QJ209-XL-TVP FAG

Brand - FAG
Item Number - QJ209-XL-TVP FAG
Category - Four Point Contact Ball Bearing Single Row

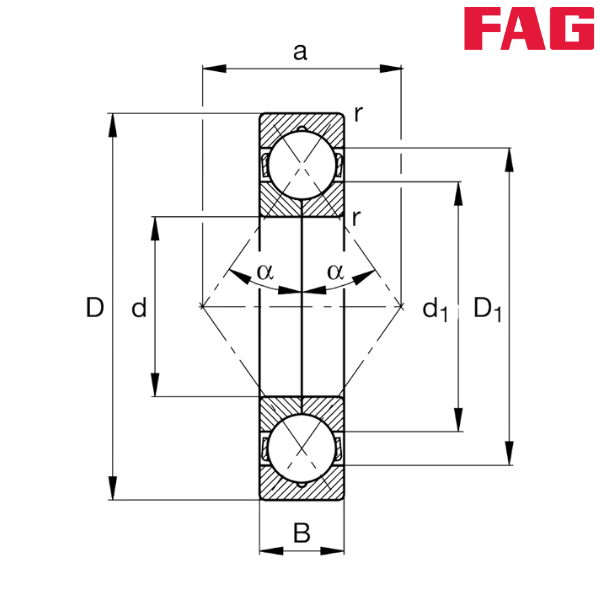

Bore Diameter (d) mm - 45
Outside Diameter (D) mm - 85
Width (B) mm - 19
Basic Dynamic Load Rating, Radial (Cr) N - 66000
Basic Static Load Rating, Radial (C0r) N - 57000
Fatigue Load Limit, Radial (Cur) N - 4000
Limiting Speed (nG) min–1 - 9800
Reference Speed (nϑr) min–1 - 6900
Weight (m) kg - 0.467
Minimum Chamfer Dimension (r min) mm - 1.1
Shoulder Diameter Outer Ring (D1) mm - 72
Shoulder Diameter Inner Ring (d1) mm - 58.5
Distance Between the Apexes of the Pressure Cones (a) mm - 45

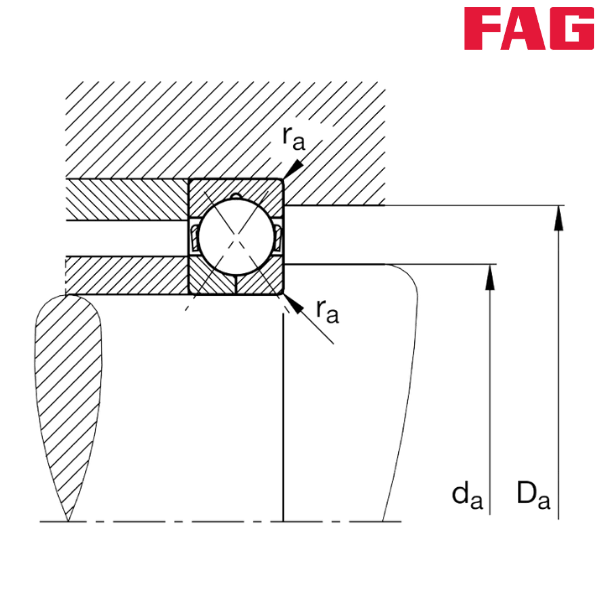

Minimum Diameter Shaft Shoulder (da) mm - 52
Maximum Diameter of Housing Shoulder (Da) mm - 78
Maximum Fillet Radius (ra) mm - 1

Descriptions of Suffixes :
--------------------------------------------------------------------------
XL - X-Life Bearing, Dependent on Bore Code and Bearing Type
TVP - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66

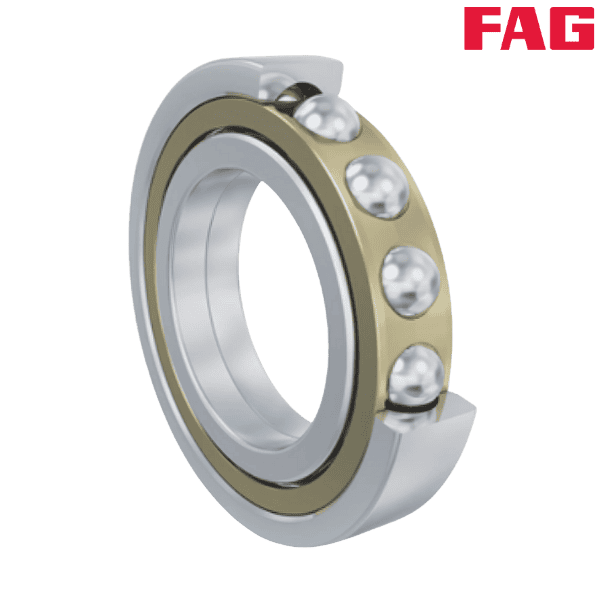

** Images are for representation purposes only
