Description
Brand - FAG
Item Number - QJ1096-N2-MPA
Category - Four Point Contact Bearings
Weight (Kg) - 139
Inner Diameter (d) mm - 480
Outer Diameter (D) mm - 700
Inner Width (B) mm - 100
Minimum Chamfer Dimension (r) mm - 6
Shoulder Diameter Outer Ring (D1) mm - 625.8
Shoulder Diameter Inner Ring (d1) mm - 557.7
Distance Between The Apexes Of The Pressure Cones (a) mm - 413
High Retaining Slot (an) mm - 20
Width Retaining Slot (bn) mm - 15.5
Radius Retaining Slot (rn) mm - 3

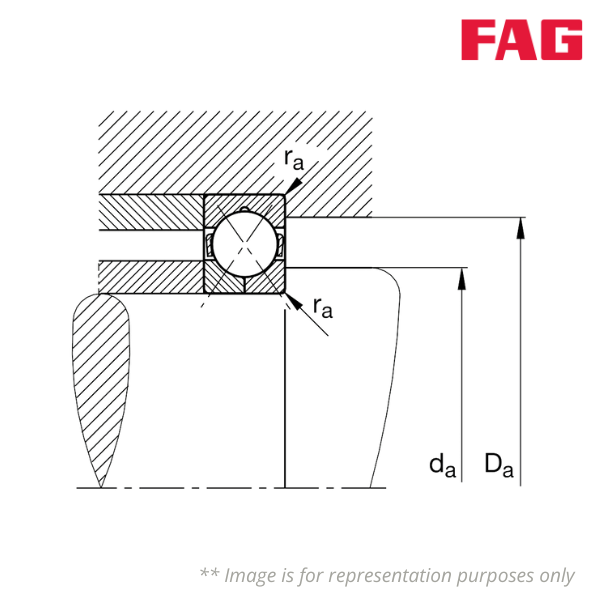

Minimum Diameter Of Shaft Shoulder (da) mm - 503
Maximum Diameter Of Housing Shoulder (Da) mm - 677
Maximum Fillet Radius (ra) mm - 5
Basic Dynamic Load Rating (Cr.) kN - 1060
Basic Static Load Rating (C0r) kN - 2750
Fatigue Limit Load Current (Cur) kN - 60
Limiting Speed (nG) rpm - 1400
