QJ1030-N2-MPA FAG

Brand - FAG
Item Number - QJ1030-N2-MPA FAG
Category - Four Point Contact Ball Bearing Single Row
Bore Diameter (d) mm - 150
Outside Diameter (D) mm - 225
Width (B) mm - 35
Basic Dynamic Load Rating, Radial (Cr) N - 205000
Basic Static Load Rating, Radial (C0r) N - 295000
Fatigue Load Limit, Radial (Cur) N - 11200
Limiting Speed (nG) min–1 - 5100
Reference Speed (nϑr) min–1 - 2650
Weight (m) kg - 6.17
Minimum Chamfer Dimension (r min) mm - 2.1
Shoulder Diameter Outer Ring (D1) mm - 199.4
Shoulder Diameter Inner Ring (d1) mm - 176.8
Distance Between the Apexes of the Pressure Cones (a) mm - 131
Hight Retaining Slot (an) mm - 8.1
Width Retaining Slot (bn) mm - 6.5
Radius Retaining Slot (rn) mm - 1

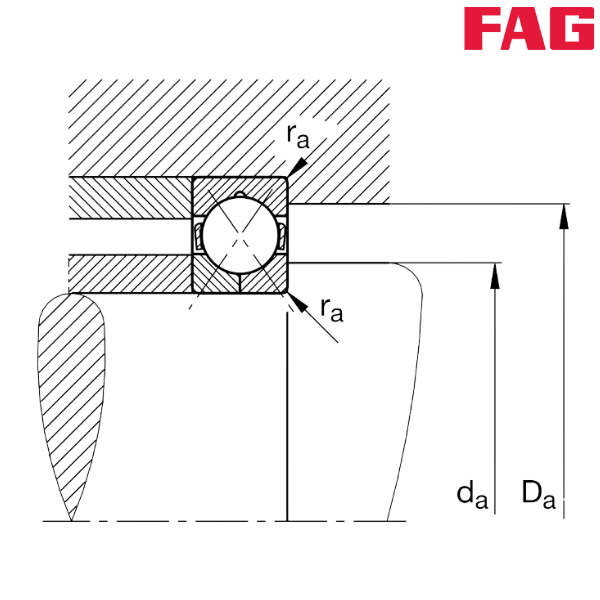

Minimum Diameter Shaft Shoulder (da) mm - 160.2
Maximum Diameter of Housing Shoulder (Da) mm - 214.8
Maximum Fillet Radius (ra) mm - 2.1

Descriptions of Suffixes :
--------------------------------------------------------------------------
MPA - Solid Brass Cage, Guided on Outer Ring
N2 - Two Retaining Slots in Outer Ring

** Images are for representation purposes only
