Description
Brand - FAG
Item Number - QJ1019-XL-N2-MPA FAG
Category - Four Point Contact Ball Bearing Single Row
Bore Diameter (d) mm - 95
Outside Diameter (D) mm - 145
Width (B) mm - 24
Basic Dynamic Load Rating, Radial (Cr) N - 106000
Basic Static Load Rating, Radial (C0r) N - 121000
Fatigue Load Limit, Radial (Cur) N - 7600
Limiting Speed (nG) min–1 - 8200
Reference Speed (nϑr) min–1 - 3850
Weight (m) kg - 1.56
Minimum Chamfer Dimension (r min) mm - 1.5
Shoulder Diameter Outer Ring (D1) mm - 128.1
Shoulder Diameter Inner Ring (d1) mm - 112.9
Distance Between the Apexes of the Pressure Cones (a) mm - 84
Hight Retaining Slot (an) mm - 5
Width Retaining Slot (bn) mm - 6.5
Radius Retaining Slot (rn) mm - 0.5

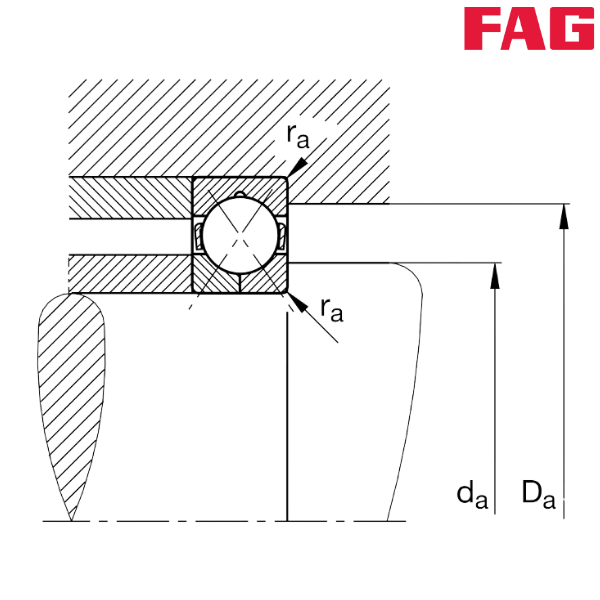

Minimum Diameter Shaft Shoulder (da) mm - 102
Maximum Diameter of Housing Shoulder (Da) mm - 138
Maximum Fillet Radius (ra) mm - 1.5
Descriptions of Suffixes :
--------------------------------------------------------------------------
MPA - Solid Brass Cage, Guided on Outer Ring
XL - X-Life Bearing, Dependent on Bore Code and Bearing Type
N2 - Two Retaining Slots in Outer Ring
** Images are for representation purposes only
