Description
Brand - FAG
Item Number - QJ10/560-N2-MPA
Category - Four Point Contact Bearings
Weight (Kg) - 222
Inner Diameter (d) mm - 560
Outer Diameter (D) mm - 820
Inner Width (B) mm - 115
Minimum Chamfer Dimension (r) mm - 6
Shoulder Diameter Outer Ring (D1) mm - 731
Shoulder Diameter Inner Ring (d1) mm - 652
Distance Between The Apexes Of The Pressure Cones (a) mm - 483
High Retaining Slot (an) mm - 25
Width Retaining Slot (bn) mm - 20.5
Radius Retaining Slot (rn) mm - 3

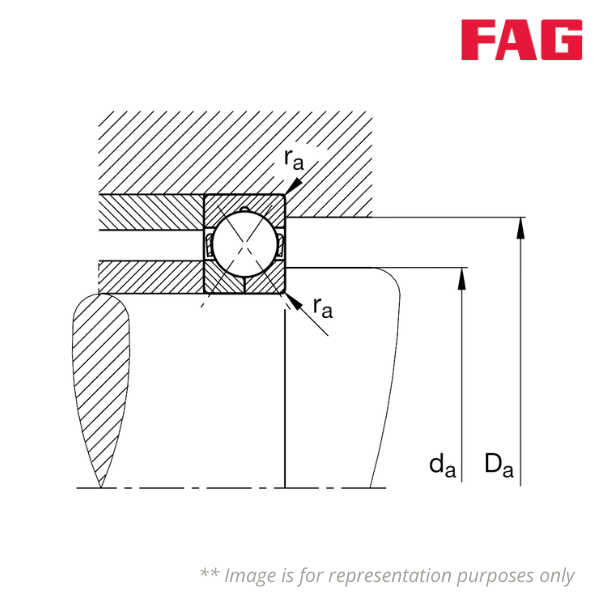

Minimum Diameter Of Shaft Shoulder (da) mm - 583
Maximum Diameter Of Housing Shoulder (Da) mm - 797
Maximum Fillet Radius (ra) mm - 5
Basic Dynamic Load Rating (Cr.) kN - 1320
Basic Static Load Rating (C0r) kN - 3750
Fatigue Limit Load Current (Cur) kN - 77
Limiting Speed (nG) rpm - 1200
