Description
Brand - NILOS
Item Number - QJ 226 AV NILOS
Category - NILOS-RING for Four Point Contact Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 130 mm
Outer Diameter (a) - 214 mm
Dimension (C) - 173 mm
Widtth (h) - 4 mm
Material Thickness (s) - 0.5 mm

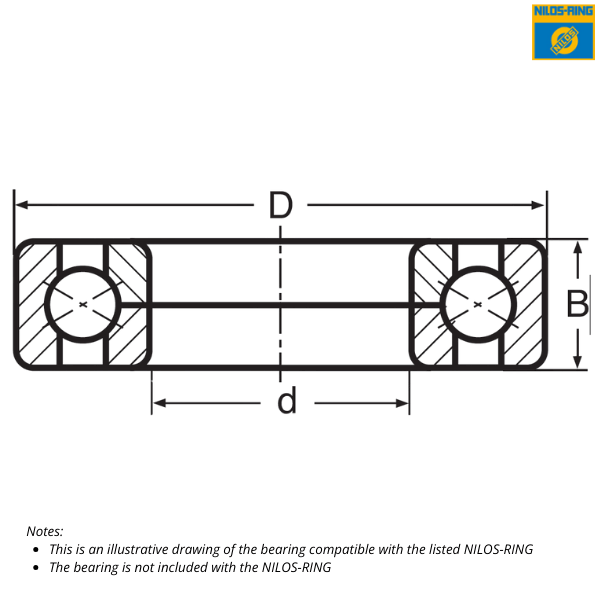

Description of Compatible Bearing (QJ 2 Series) :
Bearing Part Number - QJ 226
Bearing Type - Four Point Contact Ball Bearing
Inner Diameter (d) - 130 mm
Outer Diameter (D) - 230 mm
Width (B) - 40 mm
♦♦ Images are for representation purposes only
Item Number - QJ 226 AV NILOS
Category - NILOS-RING for Four Point Contact Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 130 mm
Outer Diameter (a) - 214 mm
Dimension (C) - 173 mm
Widtth (h) - 4 mm
Material Thickness (s) - 0.5 mm
Description of Compatible Bearing (QJ 2 Series) :
Bearing Part Number - QJ 226
Bearing Type - Four Point Contact Ball Bearing
Inner Diameter (d) - 130 mm
Outer Diameter (D) - 230 mm
Width (B) - 40 mm
♦♦ Images are for representation purposes only
