Description
Brand - RBC
Item Number - PTRY 9 RBC
Category - Track Runner (Plain Yoke Style)
Inside Bearing Type - Tapered Roller Bearing (TRB)

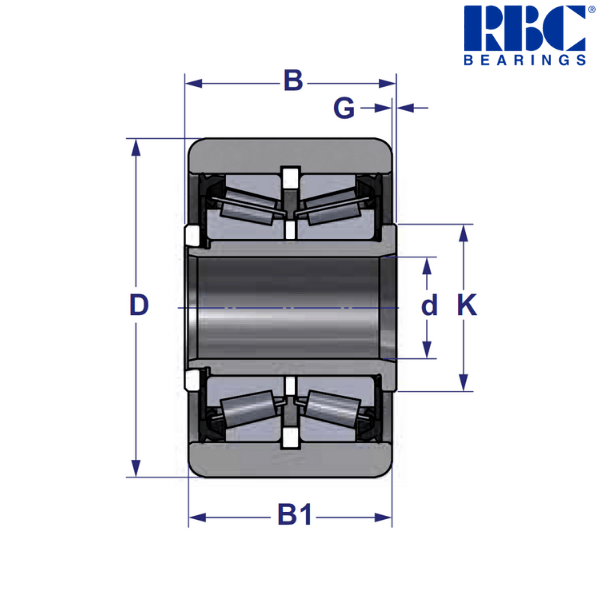

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 9 (+.000 to -.001) inch
Width (B1) - 4.75 inch
Bore Diameter (d) - 3.755 (+.001 to -.000) inch
Overall Width (B) - 5 (+.005 to -.010) inch
Shoulder Length (G) - 0.125 inch
Shoulder Diameter (K) - 5.5 inch
Dynamic Radial Load - 134230 lbs
Static Thrust Load - 147000 lbs
Static Radial Load - 250000 lbs
Equivalent Part Number in OSBORN - PLRY 9

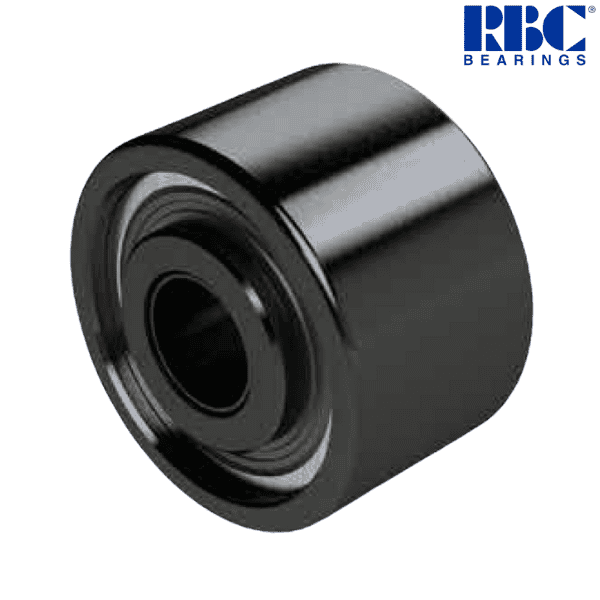

♦ ♦ Images are for representation purposes only
Item Number - PTRY 9 RBC
Category - Track Runner (Plain Yoke Style)
Inside Bearing Type - Tapered Roller Bearing (TRB)
Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 9 (+.000 to -.001) inch
Width (B1) - 4.75 inch
Bore Diameter (d) - 3.755 (+.001 to -.000) inch
Overall Width (B) - 5 (+.005 to -.010) inch
Shoulder Length (G) - 0.125 inch
Shoulder Diameter (K) - 5.5 inch
Dynamic Radial Load - 134230 lbs
Static Thrust Load - 147000 lbs
Static Radial Load - 250000 lbs
Equivalent Part Number in OSBORN - PLRY 9
♦ ♦ Images are for representation purposes only
