Description
Brand - RBC
Item Number - PTRY 8 RBC
Category - Track Runner (Plain Yoke Style)
Inside Bearing Type - Tapered Roller Bearing (TRB)

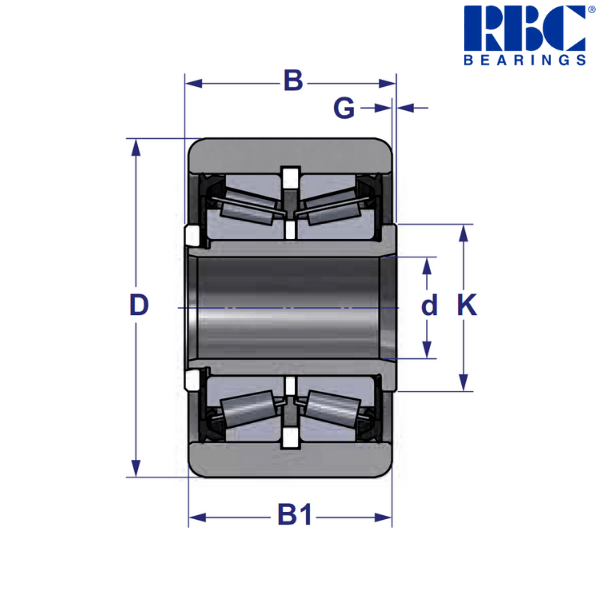

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 8 (+.000 to -.001) inch
Width (B1) - 4.25 inch
Bore Diameter (d) - 3.255 (+.001 to -.000) inch
Overall Width (B) - 4.5 (+.005 to -.010) inch
Shoulder Length (G) - 0.125 inch
Shoulder Diameter (K) - 4.75 inch
Dynamic Radial Load - 83890 lbs
Static Thrust Load - 110000 lbs
Static Radial Load - 159800 lbs
Equivalent Part Number in OSBORN - PLRY 8

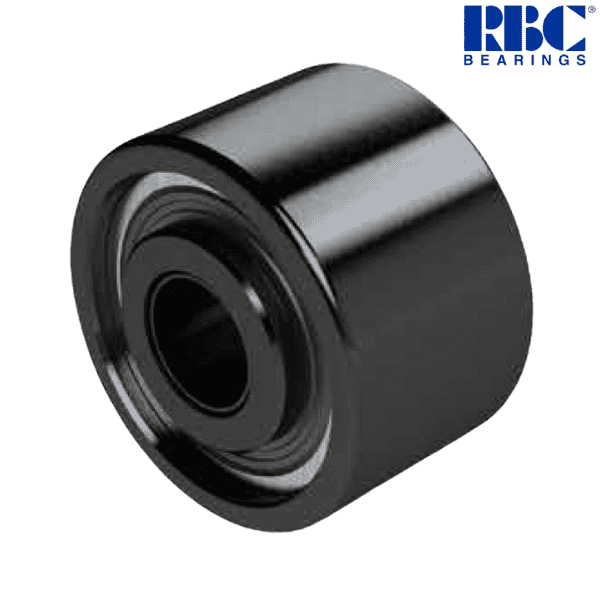

♦ ♦ Images are for representation purposes only
Item Number - PTRY 8 RBC
Category - Track Runner (Plain Yoke Style)
Inside Bearing Type - Tapered Roller Bearing (TRB)
Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 8 (+.000 to -.001) inch
Width (B1) - 4.25 inch
Bore Diameter (d) - 3.255 (+.001 to -.000) inch
Overall Width (B) - 4.5 (+.005 to -.010) inch
Shoulder Length (G) - 0.125 inch
Shoulder Diameter (K) - 4.75 inch
Dynamic Radial Load - 83890 lbs
Static Thrust Load - 110000 lbs
Static Radial Load - 159800 lbs
Equivalent Part Number in OSBORN - PLRY 8
♦ ♦ Images are for representation purposes only
