Description
Brand - RBC
Item Number - PTRY 3 1/2 RBC
Category - Track Runner (Plain Yoke Style)
Inside Bearing Type - Tapered Roller Bearing (TRB)

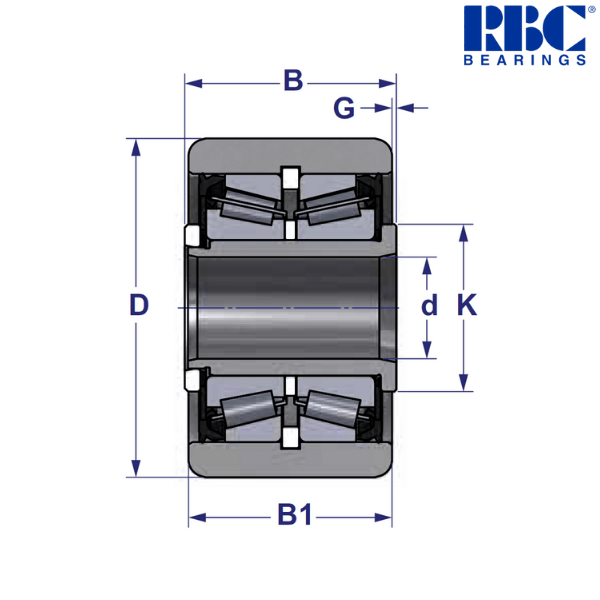

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 3.5 (+.000 to -.001) inch
Width (B1) - 2 inch
Bore Diameter (d) - 1.125 (+.0005 to -.0000) inch
Overall Width (B) - 2.062 (+.005 to -.010) inch
Shoulder Length (G) - 0.031 inch
Shoulder Diameter (K) - 2 inch
Dynamic Radial Load - 17590 lbs
Static Thrust Load - 13100 lbs
Static Radial Load - 27200 lbs
Equivalent Part Number in OSBORN - PLRY 3 - 1/2
Equivalent Part Number in McGill - PCYR 3 1/2

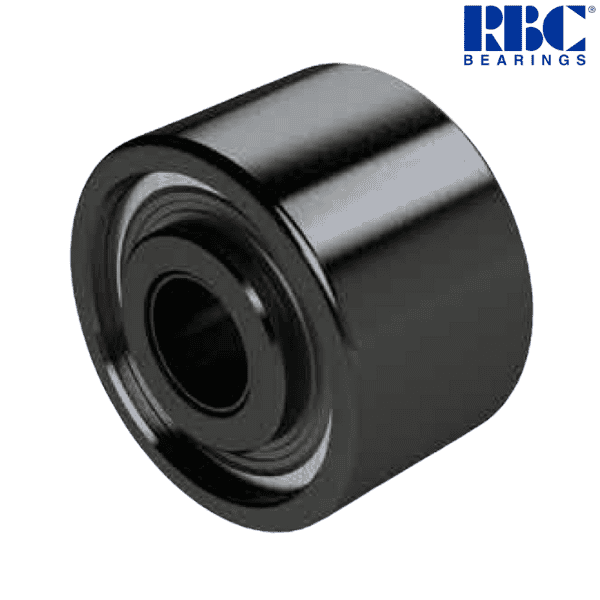

♦ ♦ Images are for representation purposes only
Item Number - PTRY 3 1/2 RBC
Category - Track Runner (Plain Yoke Style)
Inside Bearing Type - Tapered Roller Bearing (TRB)
Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 3.5 (+.000 to -.001) inch
Width (B1) - 2 inch
Bore Diameter (d) - 1.125 (+.0005 to -.0000) inch
Overall Width (B) - 2.062 (+.005 to -.010) inch
Shoulder Length (G) - 0.031 inch
Shoulder Diameter (K) - 2 inch
Dynamic Radial Load - 17590 lbs
Static Thrust Load - 13100 lbs
Static Radial Load - 27200 lbs
Equivalent Part Number in OSBORN - PLRY 3 - 1/2
Equivalent Part Number in McGill - PCYR 3 1/2
♦ ♦ Images are for representation purposes only
