Description
Brand - RBC
Item Number - PTR 2 RBC
Category - Track Runner (Plain Track Rollers)
Inside Bearing Type - Ball Bearing (BB)

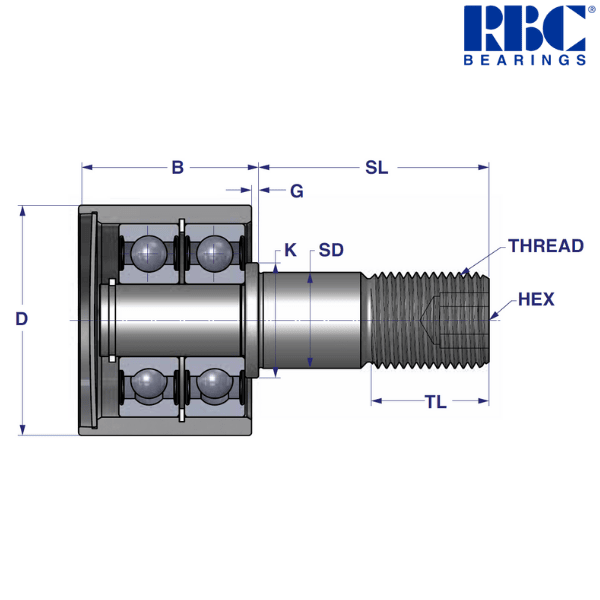

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 2 (+.000 to -.001) inch
Width of Roller (B) - 1.687 inch
Shank Diameter (SD) - 0.875 (+.000 to -.001) inch
Shank Length (SL) - 2 inch
Minimum Eff. Length Thread Length (TL) - 1.125 inch
Thread Class 2A - 7/8-14
Hex - 0.3125 inch
Shoulder Diameter (K) - 1 inch
Shoulder Length (G) - 0.062 inch
Dynamic Radial Load - 3830 lbs
Static Thrust Load - 1000 lbs
Static Radial Load - 1620 lbs
Equivalent Part Number in OSBORN - PLR 2
Equivalent Part Number in McGill - PCF 2

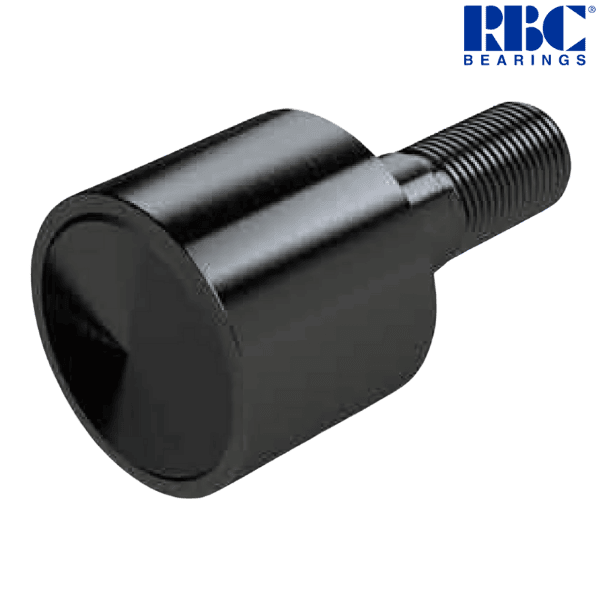

♦ ♦ Images are for representation purposes only
Item Number - PTR 2 RBC
Category - Track Runner (Plain Track Rollers)
Inside Bearing Type - Ball Bearing (BB)
Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 2 (+.000 to -.001) inch
Width of Roller (B) - 1.687 inch
Shank Diameter (SD) - 0.875 (+.000 to -.001) inch
Shank Length (SL) - 2 inch
Minimum Eff. Length Thread Length (TL) - 1.125 inch
Thread Class 2A - 7/8-14
Hex - 0.3125 inch
Shoulder Diameter (K) - 1 inch
Shoulder Length (G) - 0.062 inch
Dynamic Radial Load - 3830 lbs
Static Thrust Load - 1000 lbs
Static Radial Load - 1620 lbs
Equivalent Part Number in OSBORN - PLR 2
Equivalent Part Number in McGill - PCF 2
♦ ♦ Images are for representation purposes only
