Description
Brand - RBC
Item Number - PTR 1 3/8 RBC
Category - Track Runner (Plain Track Rollers)
Inside Bearing Type - Ball Bearing (BB)

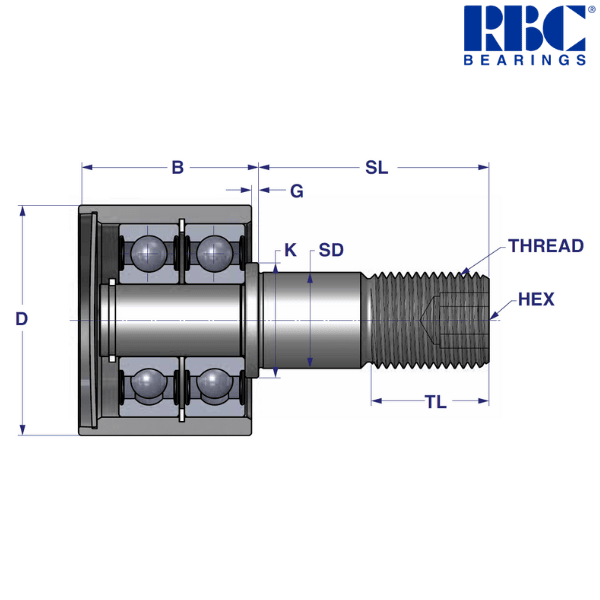

Principal Dimensions & Load Ratings (Imperial) :
Outside Diameter of Roller (D) - 1.375 (+.000 to -.001) inch
Width of Roller (B) - 0.844 inch
Shank Diameter (SD) - 0.5 (+.000 to -.001) inch
Shank Length (SL) - 1.25 inch
Minimum Eff. Length Thread Length (TL) - 0.625 inch
Thread Class 2A - 1/2-20
Hex - 0.1875 inch
Shoulder Diameter (K) - 0.625 inch
Shoulder Length (G) - 0.031 inch
Dynamic Radial Load - 1350 lbs
Static Thrust Load - 370 lbs
Static Radial Load - 600 lbs

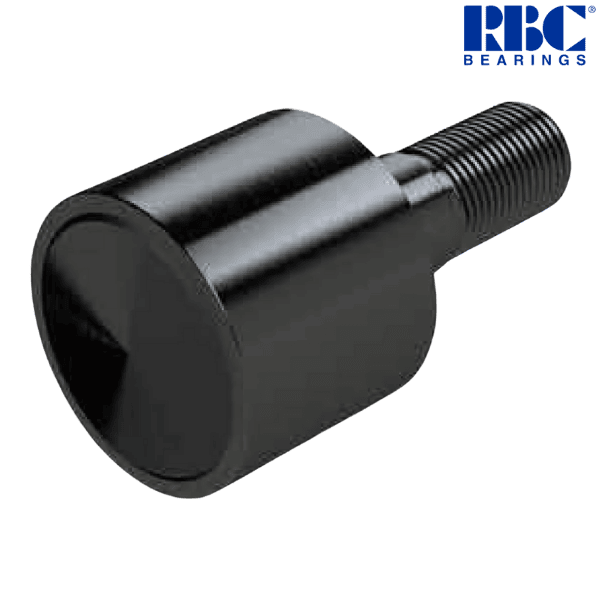

♦ ♦ Images are for representation purposes only
