Description

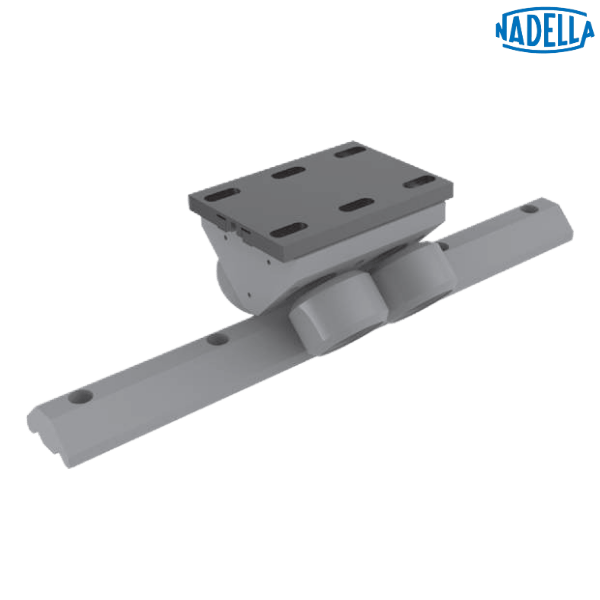

Brand - NADELLA
Item Number - PR 4115 NADELLA
Category - Adjustment Plate for BL Carriage
Principal Dimensions & Load Ratings (Metric):
Dimension (L) - 270
Dimension (W) - 168 mm
Dimension (A) - 17 mm
Weight - 5.7 kg
Combination with ROLBLOC Carriages - BL 4115
Description of Prefix:
PR - Adjustment plates for BL carriages of Rolbloc system
Other salient points to be noted:
• The adjusting plates allow to easily set the proper preload during the mounting on the machine by acting on the dimension Ih
• Two steel plates are positioned between the Rolbloc carriage and the mounting surface
• These plates help in proper alignment and positioning of the carriage

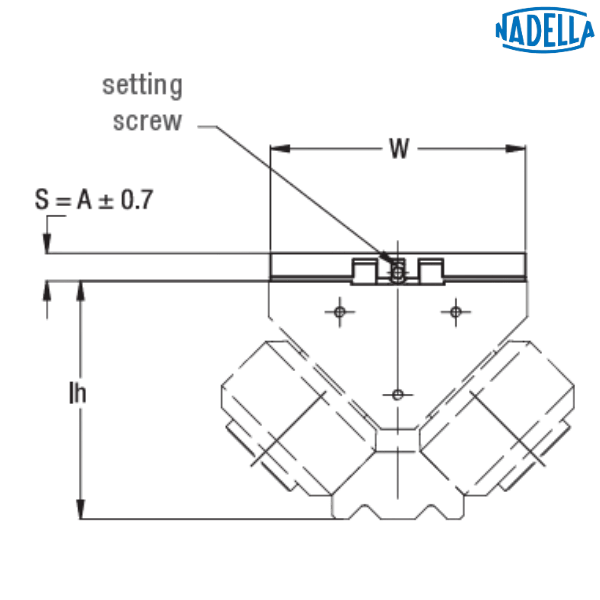

• Alignment is adjusted using the setting screw
• Final tightening of the mounting screws is done only after the setting screw adjustment is complete
• Dimension W of the plates is 2 mm lower than Rolbloc central body
• Use the Rolbloc side as a reference for the positioning

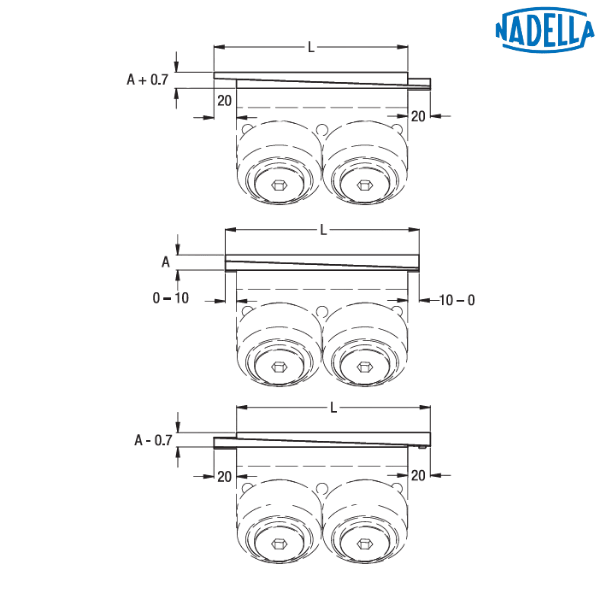

• When the plates are set in the mid-position (thickness A), they allow a 10 mm displacement from the block centreline
• This displacement can be adjusted—either reduced or set to zero—depending on minimum or maximum regulation
• To fully utilize the ±0.7 mm thickness setting capability, ensure there is an additional 10 mm space beyond the plate length on each side
• This totals to 20 mm extra over the block length to accommodate the full adjustment range

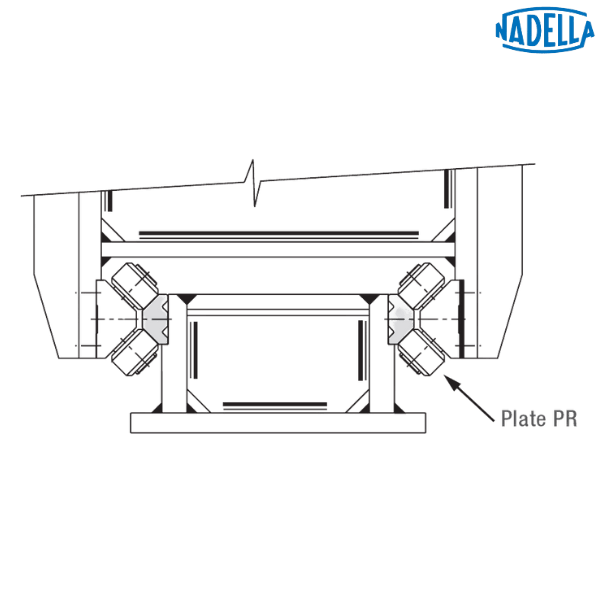

• A typical example of Rolbloc system assembly, with opposing parallel guides is shown. For optimal assembly, it is recommended to use adjustment plates PR on one side
♦ ♦ Images are for representation purposes only
