Description
Brand - BECO

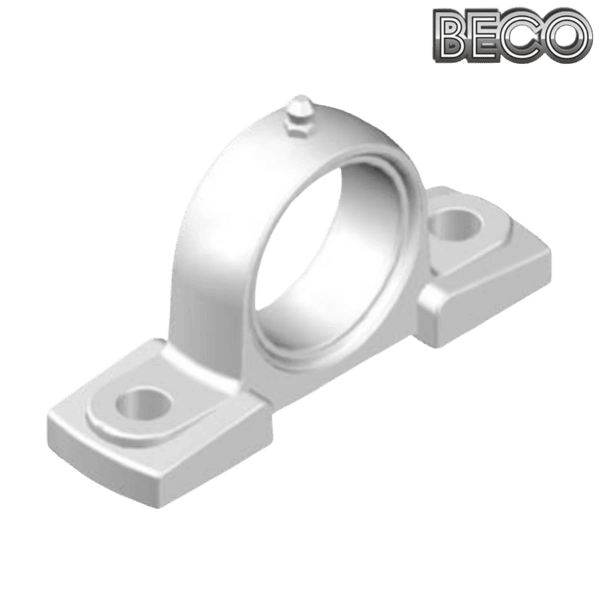

Item Number - PLASTIC HOUSING P PL 212 BECO
Category - Housing in Plastic (200 Series)

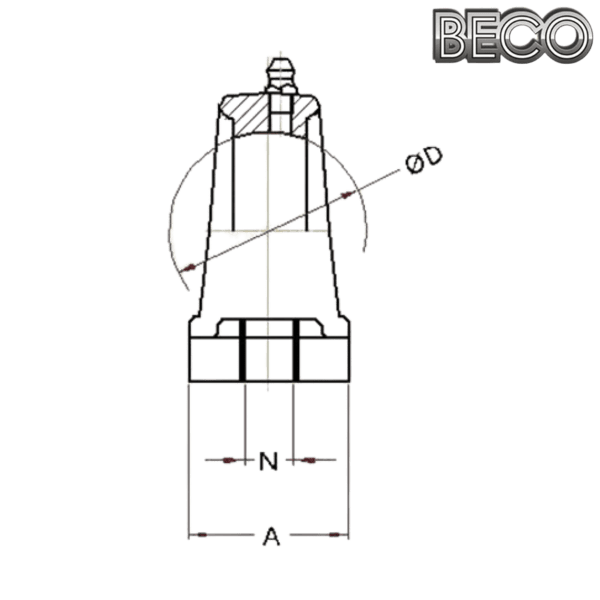

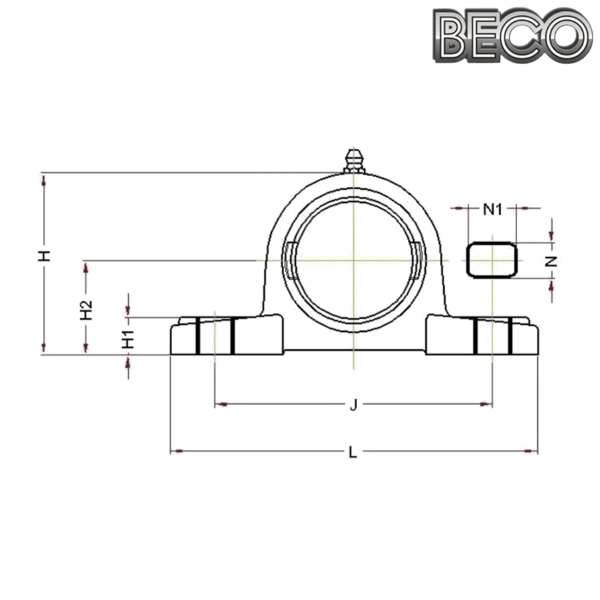

Diameter (D) mm - 110
Dimension (L) mm - 241
Dimension (J) mm - 184 ± 0.7
Dimension (A) mm - 70
Dimension (H) mm - 137.5
Dimension (H1) mm - 26.5
Dimension (H2) mm - 69.8 ± 0.20
Diameter (N) mm - 17
Dimension (N1) mm - 20
Weight (kg) - 0.707
----------------------------------------------
Housing + Bearing = Bearing Unit
----------------------------------------------
PLASTIC HOUSING P PL 212 + UC 212 BSS 2RS NSF H1 = UCP PL 212 BSS 2RS NSF H1
** Images are for representation purposes only
