Description
Brand - BECO
Item Number - PLASTIC HOUSING P PL 211 BECO
Category - Housing in Plastic (200 Series)

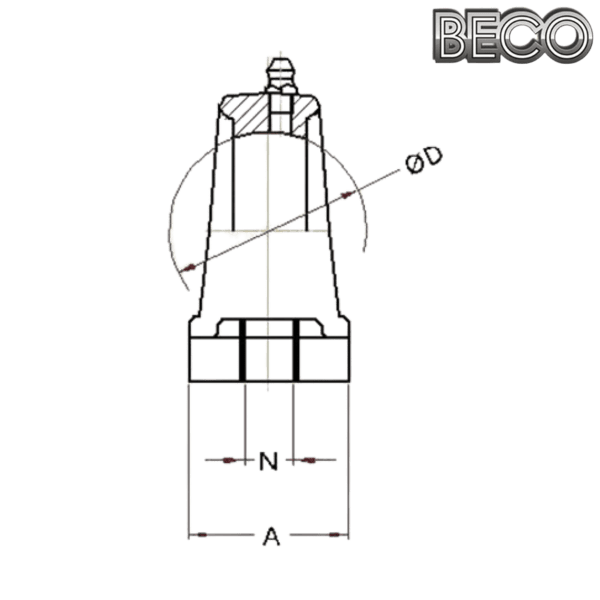

Diameter (D) mm - 100

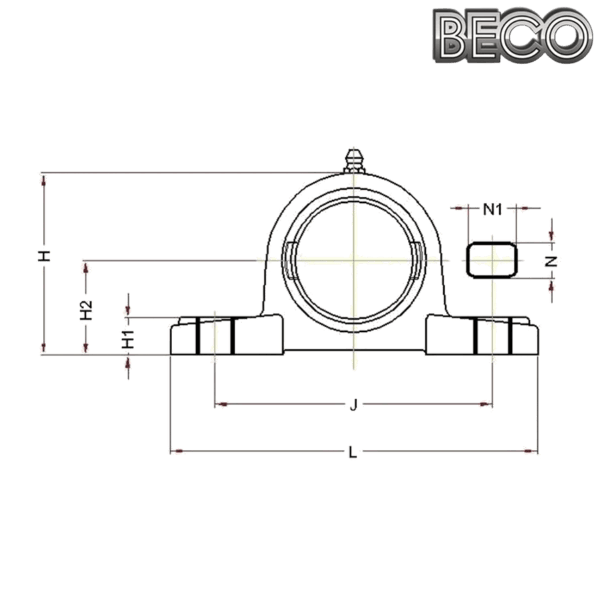

Dimension (L) mm - 220
Dimension (J) mm - 171 ± 0.7
Dimension (A) mm - 60
Dimension (H) mm - 126.5
Dimension (H1) mm - 22.5
Dimension (H2) mm - 63.5 ± 0.20
Diameter (N) mm - 17
Dimension (N1) mm - 20
Weight (kg) - 0.551
----------------------------------------------
Housing + Bearing = Bearing Unit
----------------------------------------------
PLASTIC HOUSING P PL 211 + UC 211 BSS 2RS NSF H1 = UCP PL 211 BSS 2RS NSF H1

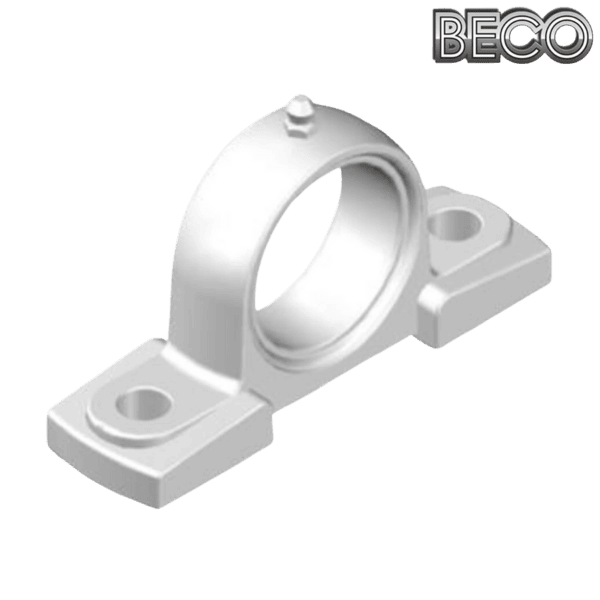

** Images are for representation purposes only
