Description
Brand - BECO

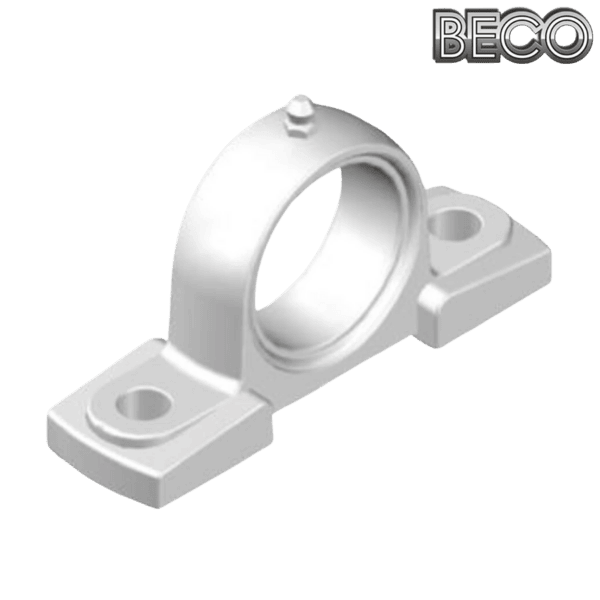

Item Number - PLASTIC HOUSING P PL 206 BECO
Category - Housing in Plastic (200 Series)

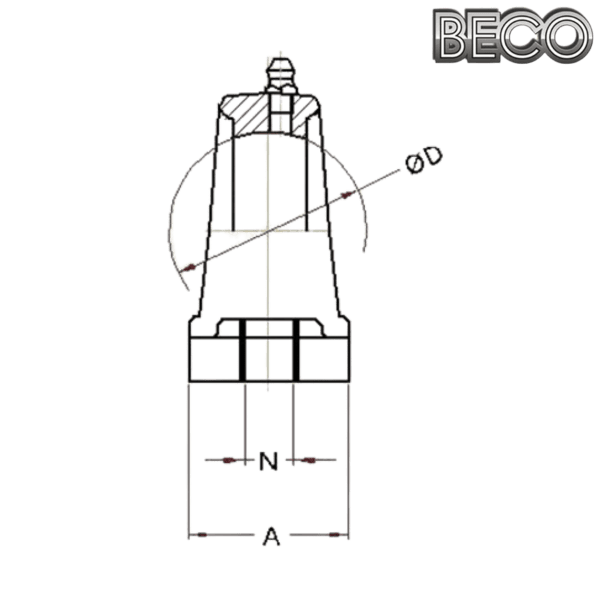

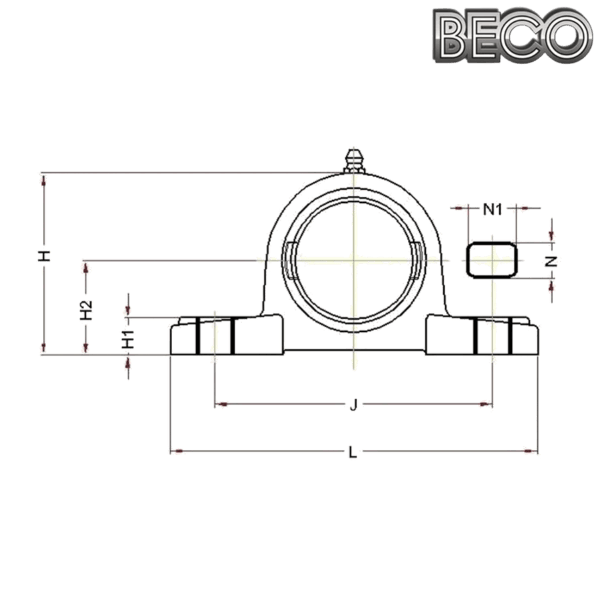

Diameter (D) mm - 62
Dimension (L) mm - 164
Dimension (J) mm - 119 ± 0.7
Dimension (A) mm - 46
Dimension (H) mm - 83.5
Dimension (H1) mm - 17.8
Dimension (H2) mm - 42.9 ± 0.15
Diameter (N) mm - 14
Dimension (N1) mm - 18
Weight (kg) - 0.238
----------------------------------------------
Housing + Bearing = Bearing Unit
----------------------------------------------
PLASTIC HOUSING P PL 206 + UC 206 BSS 2RS NSF H1 = UCP PL 206 BSS 2RS NSF H1
** Images are for representation purposes only
