PKR 110 CNX NADELLA

Brand - NADELLA
Item Number - PKR 110 CNX NADELLA
Category - Guide Rollers with Tapered Roller Bearing
Also Known As - PKR110CNX

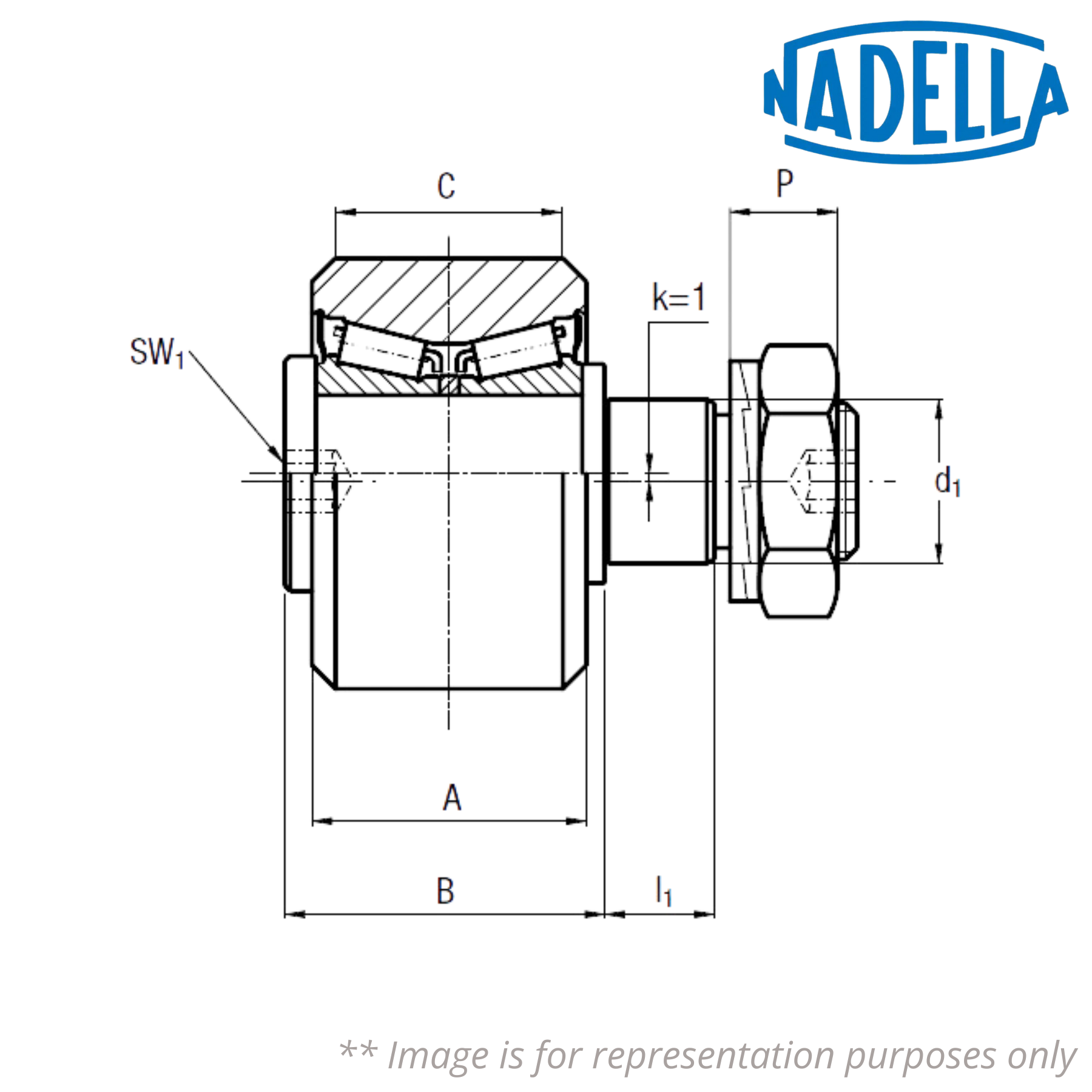

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 110 mm
Housing Bore Tolerance (d1) * - 42 mm
Thread Dimension - M36 x 1.5
Dimension (m) - 34 mm
Dimension (S min) - 33 mm
Dimension (P) - 24.6 mm
Dimension (L) - 135 mm
Dimension (A) - 63 mm
Dimension (B) - 70 mm
Dimension (C) - 48 mm
Dimension (R) - 1200 mm
Dimension (I1) - 32 mm
Dimension (M) - 56 mm
Dimension (SW1) - 14 mm
Dimension (SW2) - 55 mm
Dimension (k) - 1 mm
Basic Dynamic Load Coefficient (Cw) ** - 190000 N
Radial Load Limit (Fr) - 55600 N
Torque Wrench Setting for Non-Lubricating Threads - 450 Nm
Weight - 4.9 kg

Description of Suffixes and Prefixes:
PKR - Eccentric Cam Followers
NX - Guide Rollers with External Parts in Stainless Steel

Other salient points to be noted:
* Recommended tolerance of the clamping hole in the support: H7
** Coefficient of the calculation for the duration with base 100 km
• The concentric and eccentric cam followers with stud are supplied complete with self-locking washer and hexagonal nut

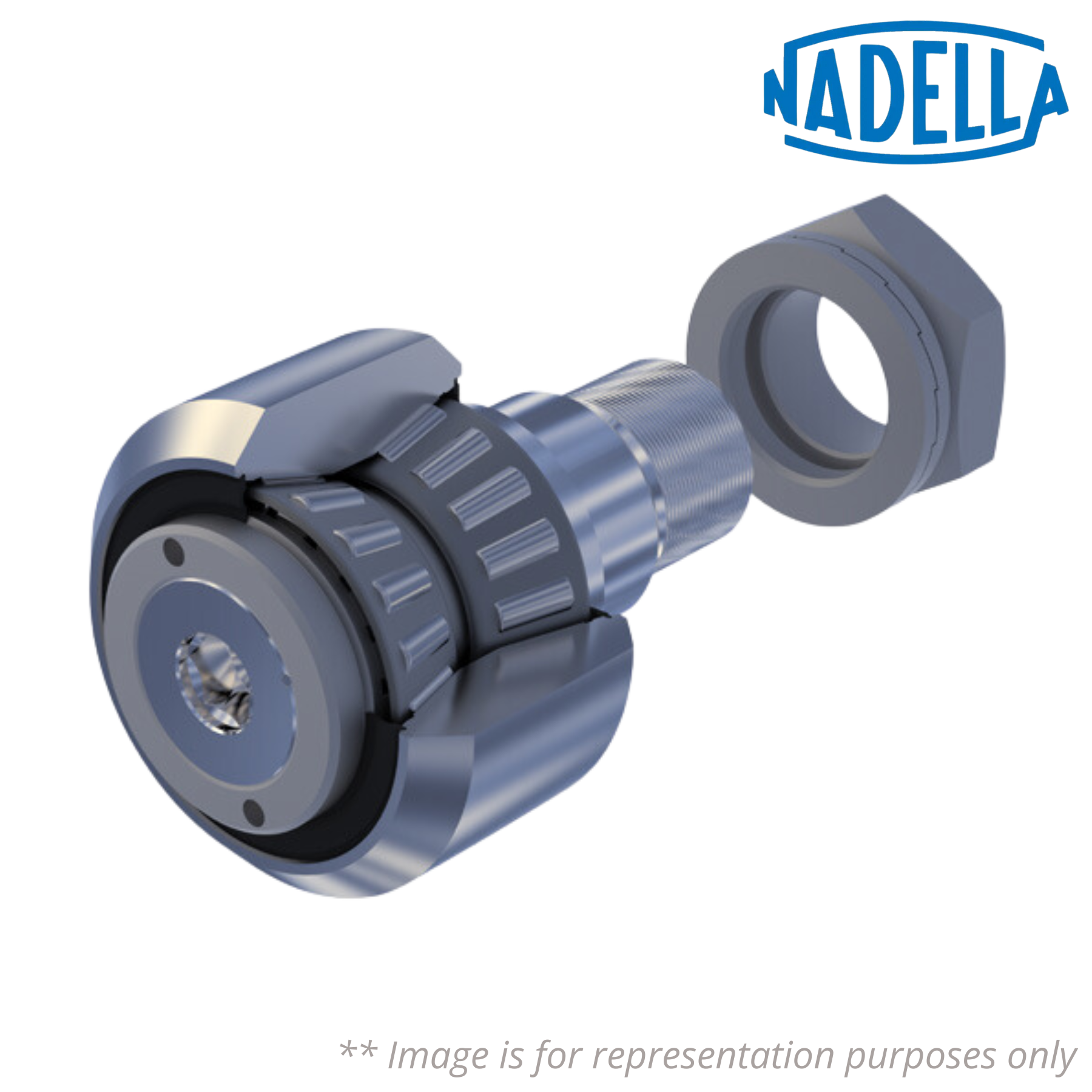

♦♦ Images are for representation purposes only
