PK 90 CV NADELLA

Brand - NADELLA
Item Number - PK 90 CV NADELLA
Category - Guide Rollers with Tapered Roller Bearing
Also Known As - PK90CV

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 90 mm
Housing Bore Tolerance (d1) * - 38 mm
Thread Dimension - M36 x 1.5
Dimension (m) - 30 mm
Dimension (S min) - 24 mm
Dimension (P) - 24.6 mm
Dimension (L) - 115 mm
Dimension (A) - 53 mm
Dimension (B) - 62 mm
Dimension (C) - 45 mm
Dimension (R) - 1200 mm
Dimension (I1) - 23 mm
Dimension (M) - 50 mm
Dimension (SW1) - 14 mm
Dimension (SW2) - 55 mm
Dimension (k) - 1 mm
Basic Dynamic Load Coefficient (Cw) ** - 134000 N
Radial Load Limit (Fr) - 43800 N
Torque Wrench Setting for Non-Lubricating Threads - 450 Nm
Weight - 2.8 kg

Description of Suffixes and Prefixes:
PK - Concentric Cam Followers
V - Viton Seal

Other salient points to be noted:
* Recommended tolerance of the clamping hole in the support: H7
** Coefficient of the calculation for the duration with base 100 km
• The concentric and eccentric cam followers with stud are supplied complete with self-locking washer and hexagonal nut

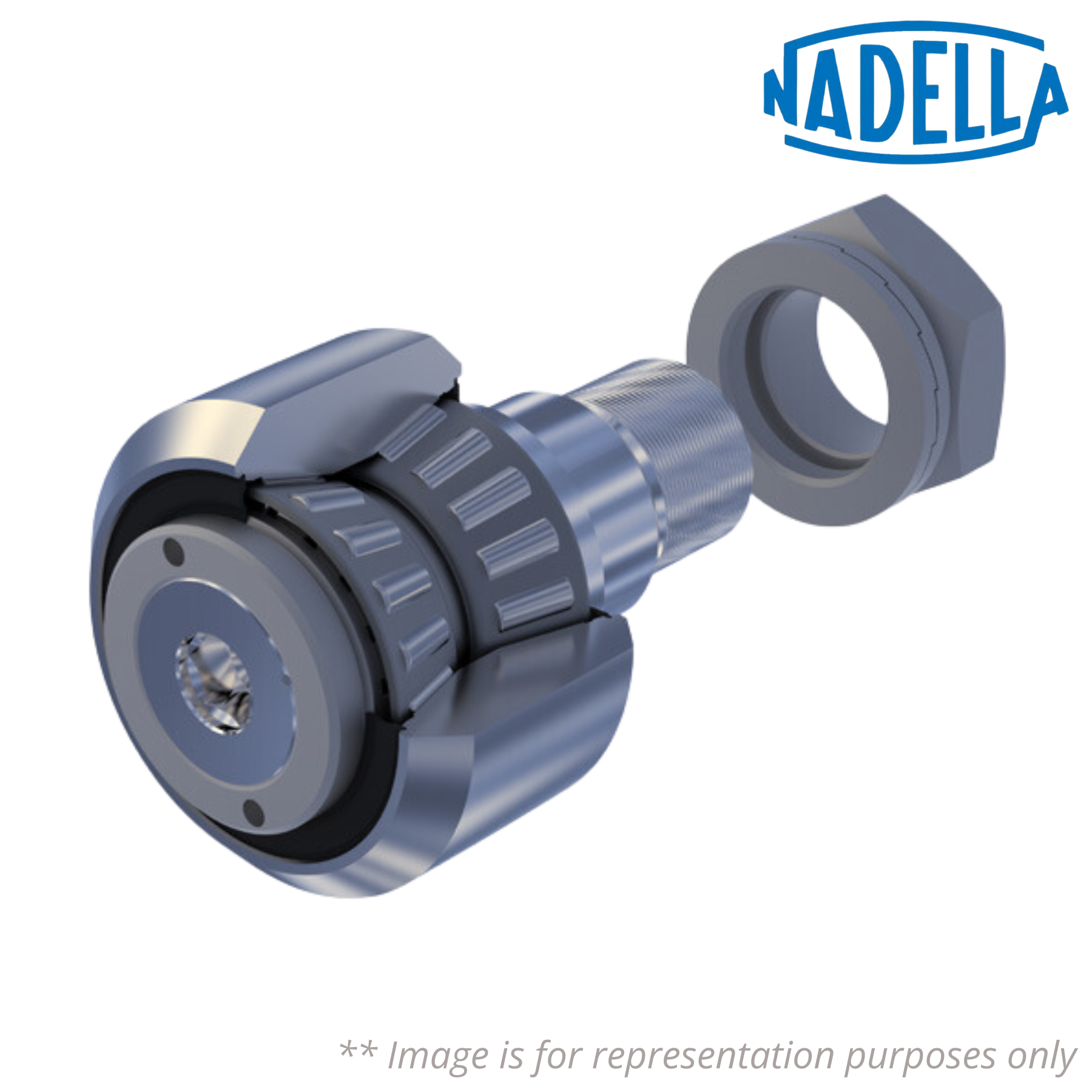

♦♦ Images are for representation purposes only
