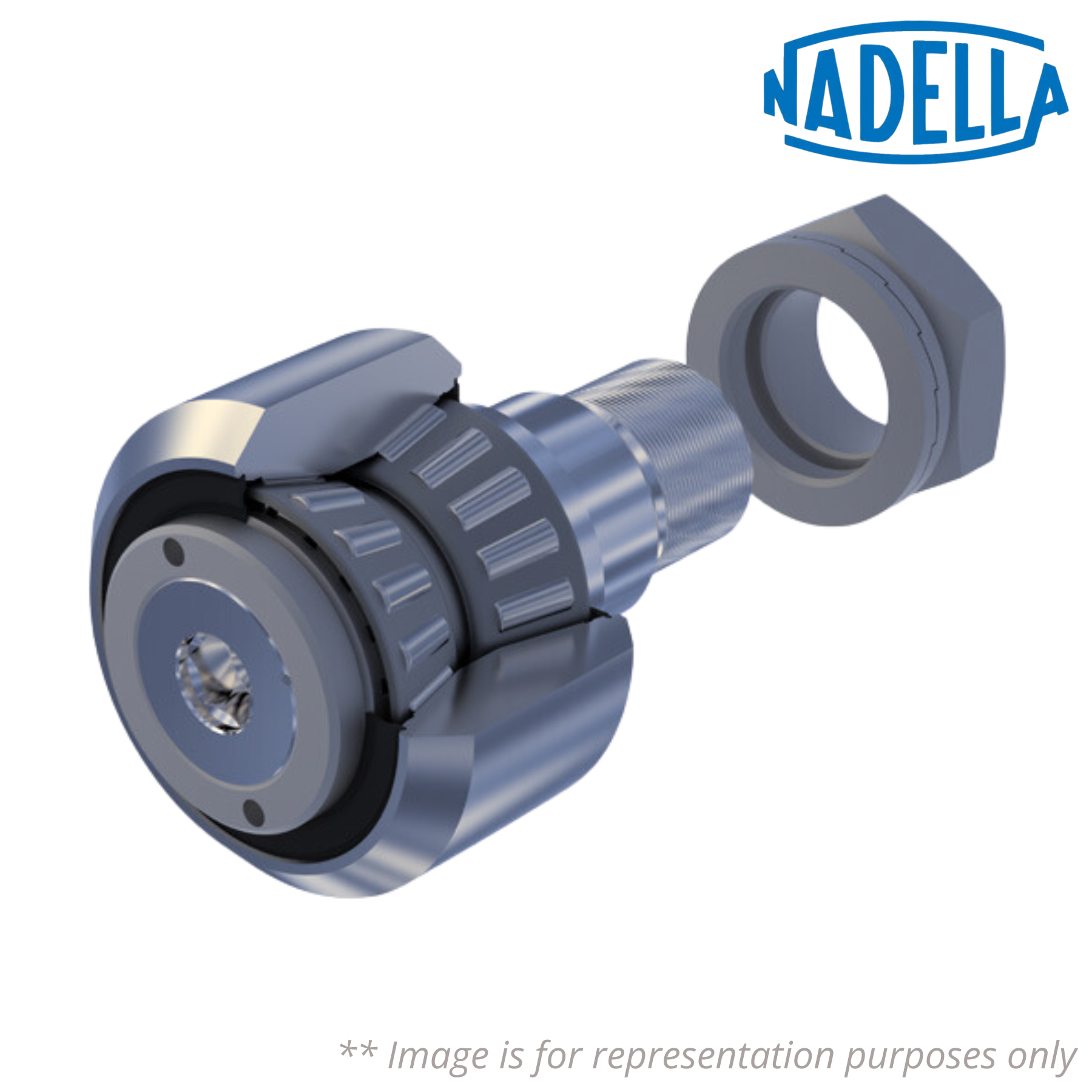

Description
Brand - NADELLA
Item Number - PK 72 C NADELLA
Category - Guide Rollers with Tapered Roller Bearing
Also Known As - PK72C
Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 72 mm
Housing Bore Tolerance (d1) * - 36 mm
Thread Dimension - M30 x 1.5
Dimension (m) - 27 mm
Dimension (S min) - 19 mm
Dimension (P) - 21.6 mm
Dimension (L) - 100 mm
Dimension (A) - 45 mm
Dimension (B) - 55 mm
Dimension (C) - 33 mm
Dimension (R) - 1200 mm
Dimension (I1) - 18 mm
Dimension (M) - 44 mm
Dimension (SW1) - 12 mm
Dimension (SW2) - 46 mm
Dimension (k) - 1 mm
Basic Dynamic Load Coefficient (Cw) ** - 69000 N
Radial Load Limit (Fr) - 31300 N
Torque Wrench Setting for Non-Lubricating Threads - 300 Nm
Weight - 1.6 kg
Description of Suffixes and Prefixes:
PK - Concentric Cam Followers
C - Rail composed by an aluminum body and one shaft in steel, with a single raceway for Base-Line system
Other salient points to be noted:
* Recommended tolerance of the clamping hole in the support: H7
** Coefficient of the calculation for the duration with base 100 km
• The concentric and eccentric cam followers with stud are supplied complete with self-locking washer and hexagonal nut
♦♦ Images are for representation purposes only
