PK 52 CV NADELLA

Brand - NADELLA
Item Number - PK 52 CV NADELLA
Category - Guide Rollers with Tapered Roller Bearing
Also Known As - PK52CV

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 52 mm
Housing Bore Tolerance (d1) * - 21 mm
Thread Dimension - M20 x 1.5
Dimension (m) - 19.8 mm
Dimension (S min) - 15 mm
Dimension (P) - 13.4 mm
Dimension (L) - 73 mm
Dimension (A) - 35 mm
Dimension (B) - 41 mm
Dimension (C) - 29 mm
Dimension (R) - 800 mm
Dimension (I1) - 14 mm
Dimension (M) - 28 mm
Dimension (SW1) - 8 mm
Dimension (SW2) - 30 mm
Dimension (k) - 1 mm
Basic Dynamic Load Coefficient (Cw) ** - 42000 N
Radial Load Limit (Fr) - 11900 N
Torque Wrench Setting for Non-Lubricating Threads - 80 Nm
Weight - 0.6 kg

Description of Suffixes and Prefixes:
PK - Concentric Cam Followers
V - Viton Seal

Other salient points to be noted:
* Recommended tolerance of the clamping hole in the support: H7
** Coefficient of the calculation for the duration with base 100 km
• The concentric and eccentric cam followers with stud are supplied complete with self-locking washer and hexagonal nut

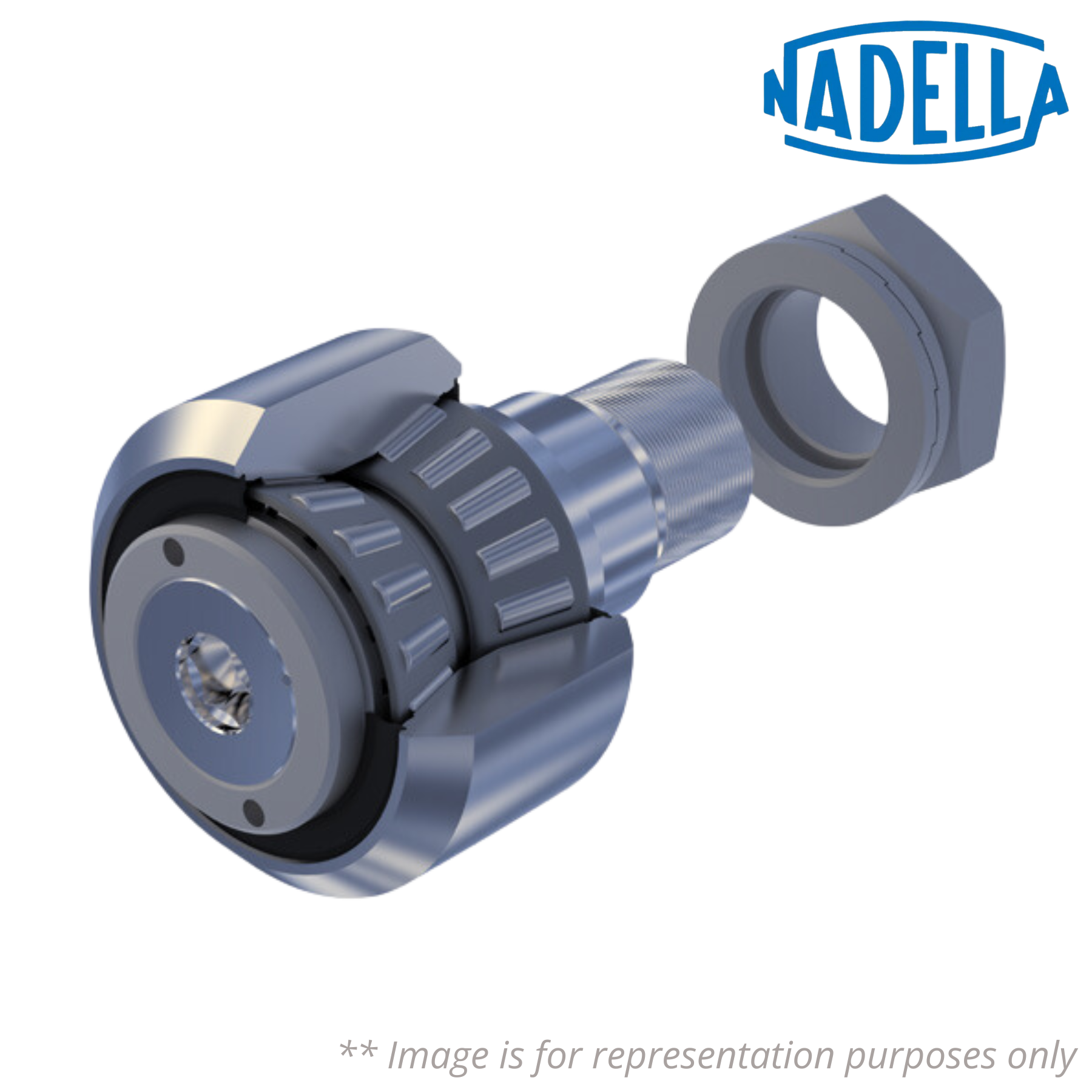

♦♦ Images are for representation purposes only
