Description
Brand - CARTER
Item Number - PHRY-225-A CARTER
Category - Plain Yoke High Roller
Imperial :

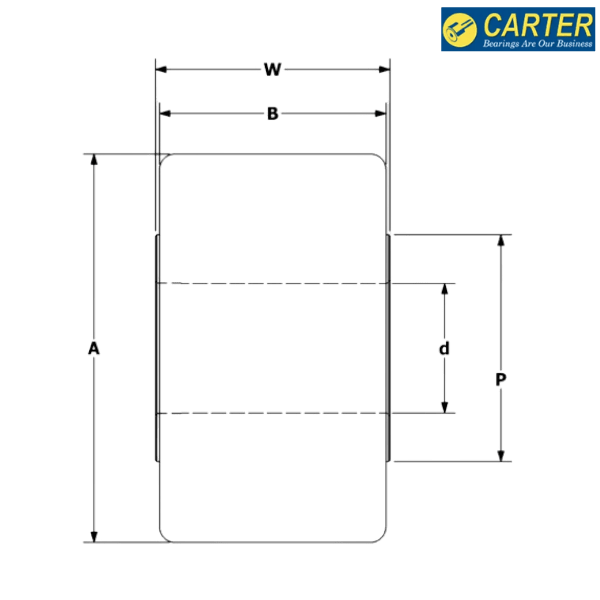

Roller Outer Diameter (A) inch - 2.25
Roller Width (B) inch - 1.5
Bore Diameter (D) inch - 0.625
Overall Width (W) inch - 1.313
Endplate Diameter (P) inch - 1.125
Maximum Static Capacity (lbf) - 1810
Basic Dynamic Rating (lbf) - 3400
Thrust Capacity (lbf) - 1120
Available With - Ball Bearing
Metric :
Roller Outer Diameter (A) mm - 57.15
Roller Width (B) mm - 38.1
Bore Diameter (D) mm - 15.875
Overall Width (W) mm - 33.3502
Endplate Diameter (P) mm - 28.575
Maximum Static Capacity (N) - 8051.2782
Basic Dynamic Rating (N) - 15123.948
**Images are for representation purposes only
