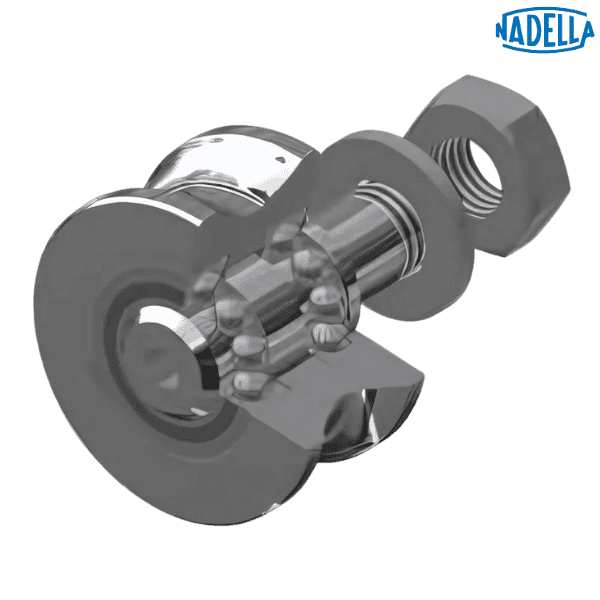

PFVR 50 NADELLA

Brand - NADELLA
Item Number - PFVR 50 NADELLA
Category - Guide Roller based on Ball Bearings (Eccentric)

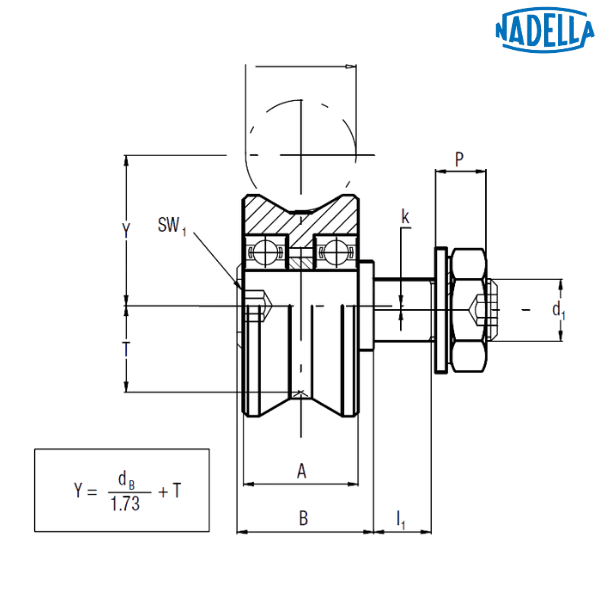

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 50 mm
Dimension (dB) - da 20 a 35
Dimension (d1) - 14 (H7) mm
Dimension (d) - M14 x 1.5
Dimension (T) - 19.6 mm
Dimension (m) - 16.5 mm
Minimum Dimension (S) - 14 mm
Dimension (P) - 13.5 mm
Dimension (L) - 59 mm
Dimension (A) - 26 mm
Dimension (B) - 31 mm
Dimension (I1) - 13 mm
Dimension (M) - 20 mm
Dimension (SW1) - 6 mm
Dimension (SW2) - 22 mm
Dimension (k) - 1 mm
Dynamic Load (Cw)* - 8800 N
Radial Limit Load (Fr)** - 4240 N
Axial Limit Load (Fa)** - 940 N
Life Coefficient (X) - 1
Life Coefficient (Y) - 4
Torque Wrench Settings*** - 44 Nm
Weight - 0.335 kg

Other salient points to be noted:
* Cw basic load for 100 km
** To avoid wear of the guide, do not exceed 25% of the limit load
*** The torque wrench settings are given for non-lubricated threads; for lubricated threads, multiply figure by 0.8

• The guide rollers are complete with self-locking washers and hexagonal nut (DIN 439B) for fitting
• Pressure angle α for load calculation: 60°
• NBR seals, RS type
