PFVR 43.22 NADELLA

Brand - NADELLA
Item Number - PFVR 43.22* NADELLA

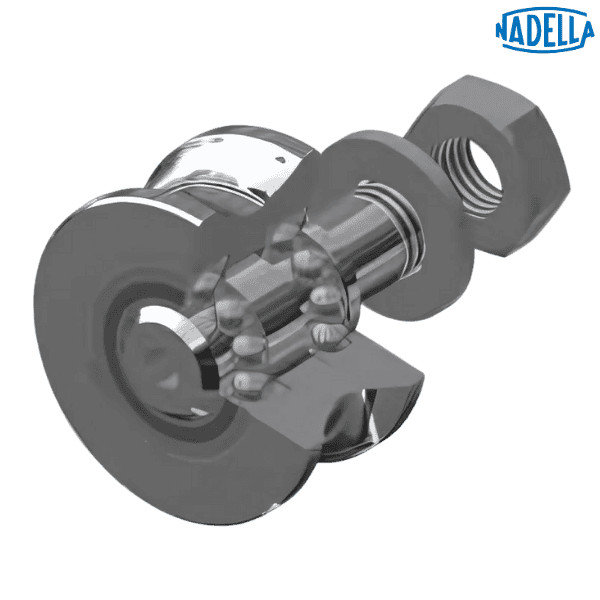

Category - Guide Roller with “Gothic Arch” Profile, based on Ball Bearings (Eccentric)

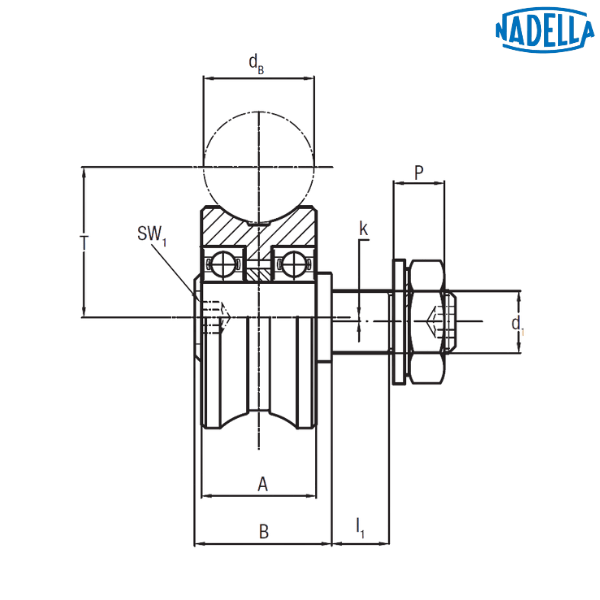

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 43 mm
Dimension (dB) - 22 mm
Dimension (d1) - 12 (H7) mm
Dimension (d) - M12 x 1.5
Dimension (T) - 29 mm
Dimension (m) - 14 mm
Minimum Dimension (S) - 13 mm
Dimension (P) - 12.5 mm
Dimension (L) - 52 mm
Dimension (A) - 23 mm
Dimension (B) - 27 mm
Dimension (I1) - 12 mm
Dimension (M) - 18 mm
Dimension (SW1) - 5 mm
Dimension (SW2) - 19 mm
Dimension (k) - 1 mm
Recommended Pairings - C 22
Dynamic Load (Cw)** - 7600 N
Radial Limit Load (Fr) - 3150 N
Axial Limit Load (Fa) - 750 N
Life Coefficient (X) - 1
Life Coefficient (Y) - 4
Torque Wrench Settings*** - 26 Nm
Weight - 0.21 kg

Other salient points to be noted:
* Available in stainless steel (suffix NX)
** Cw basic load for 100 km
*** The torque wrench settings are given for non-lubricated threads; for lubricated threads, multiply figure by 0.8

• The guide rollers are complete with self-locking washers and hexagonal nut (DIN 439B) for fitting
• Pressure angle α for load calculation: 60°
• NBR seals, RS type

♦ ♦ Images are for representation purposes only
