PFVR 35 NADELLA

Brand - NADELLA
Item Number - PFVR 35 NADELLA
Category - Guide Roller based on Ball Bearings (Eccentric)

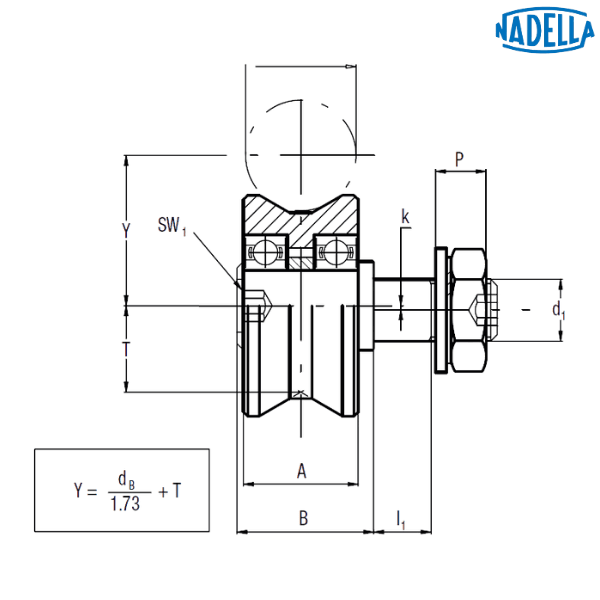

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 35 mm
Dimension (dB) - da 14 a 25
Dimension (d1) - 10 (H7) mm
Dimension (d) - M10 x 1.25
Dimension (T) - 13.6 mm
Dimension (m) - 12 mm
Minimum Dimension (S) - 12 mm
Dimension (P) - 10.7 mm
Dimension (L) - 45.3 mm
Dimension (A) - 18 mm
Dimension (B) - 22.3 mm
Dimension (I1) - 11 mm
Dimension (M) - 15 mm
Dimension (SW1) - 4 mm
Dimension (SW2) - 17 mm
Dimension (k) - 0.75 mm
Dynamic Load (Cw)* - 4550 N
Radial Limit Load (Fr)** - 1500 N
Axial Limit Load (Fa)** - 350 N
Life Coefficient (X) - 14
Life Coefficient (Y) - 4.4
Torque Wrench Settings*** - 20 Nm
Weight - 0.115 kg

Other salient points to be noted:
* Cw basic load for 100 km
** To avoid wear of the guide, do not exceed 25% of the limit load
*** The torque wrench settings are given for non-lubricated threads; for lubricated threads, multiply figure by 0.8

• The guide rollers are complete with self-locking washers and hexagonal nut (DIN 439B) for fitting
• Pressure angle α for load calculation: 60°
• NBR seals, RS type

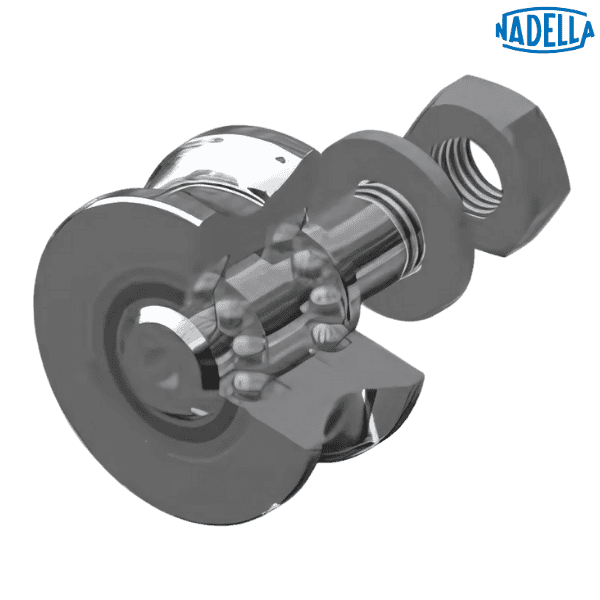

♦ ♦ Images are for representation purposes only
