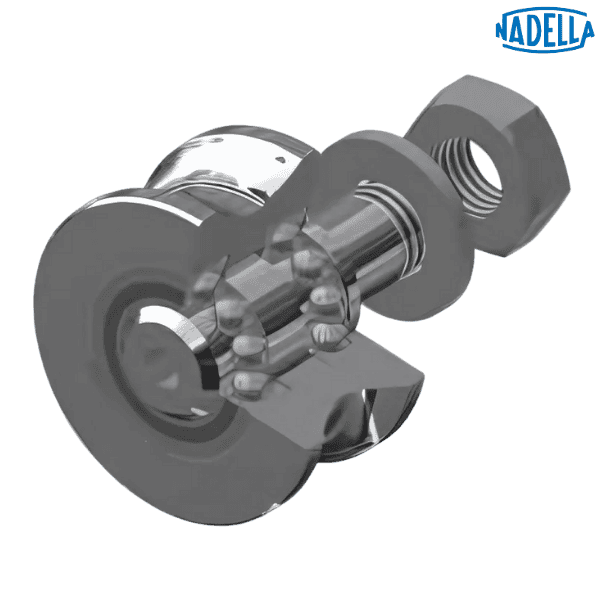

PFV 60.30 NADELLA

Brand - NADELLA
Item Number - PFV 60.30 NADELLA
Category - Guide Roller with “Gothic Arch” Profile, based on Ball Bearings (Concentric)

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 60 mm
Dimension (dB) - 30 mm
Dimension (d1) - 16 (H7) mm
Dimension (d) - M16 x 1.5
Dimension (T) - 41 mm
Dimension (m) - 19.5 mm
Minimum Dimension (S) - 17 mm
Dimension (P) - 14 mm
Dimension (L) - 69.5 mm
Dimension (A) - 31 mm
Dimension (B) - 36.5 mm
Dimension (I1) - 16 mm
Dimension (M) - 30 mm
Dimension (SW1) - 8 mm
Dimension (SW2) - 24 mm
Dimension (k) - 1 mm
Recommended Pairings - C 30
Dynamic Load (Cw)** - 15700 N
Radial Limit Load (Fr) - 5360 N
Axial Limit Load (Fa) - 1350 N
Life Coefficient (X) - 1
Life Coefficient (Y) - 4.3
Torque Wrench Settings*** - 64 Nm
Weight - 0.57 kg

Description of Prefix:
PFV - Guide roller with “gothic arch” profile, based on ball bearings, for C and DC rails of Base-Line system, and LM rails of U-Line system

Other salient points to be noted:
** Cw basic load for 100 km
*** The torque wrench settings are given for non-lubricated threads; for lubricated threads, multiply figure by 0.8

• The guide rollers are complete with self-locking washers and hexagonal nut (DIN 439B) for fitting
• Pressure angle α for load calculation: 60°
• NBR seals, RS type

♦ ♦ Images are for representation purposes only
