PFV 25.10 NADELLA

Brand - NADELLA
Item Number - PFV 25.10* NADELLA
Category - Guide Roller with “Gothic Arch” Profile, based on Ball Bearings (Concentric)

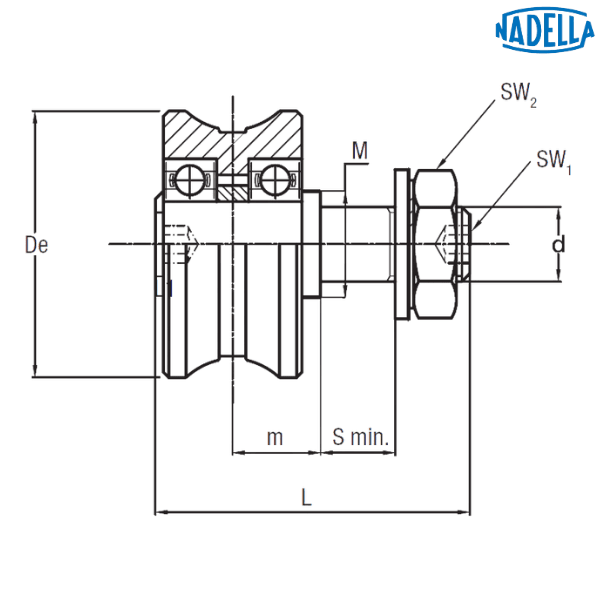

Principal Dimensions & Load Ratings (Metric):
Dimension (De) - 25 mm
Dimension (dB) - 10 mm
Dimension (d1) - 8 (H7) mm
Dimension (d) - M8 x 1.25
Dimension (T) - 15.5 mm
Dimension (m) - 7.5 mm
Minimum Dimension (S) - 11 mm
Dimension (P) - 9 mm
Dimension (L) - 34.8 mm
Dimension (A) - 12 mm
Dimension (B) - 14.8 mm
Dimension (I1) - 10 mm
Dimension (M) - 12 mm
Dimension (SW1) - 4 mm
Dimension (SW2) - 13 mm
Dimension (k) - 0.75 mm
Recommended Pairings - C 10, DC 10.54
Dynamic Load (Cw)** - 1850 N
Radial Limit Load (Fr) - 1080 N
Axial Limit Load (Fa) - 200 N
Life Coefficient (X) - 1
Life Coefficient (Y) - 4.4
Torque Wrench Settings*** - 8 Nm
Weight - 0.042 kg

Description of Prefix:
PFV - Guide roller with “gothic arch” profile, based on ball bearings, for C and DC rails of Base-Line system, and LM rails of U-Line system

Other salient points to be noted:
* Available in stainless steel (suffix NX)
** Cw basic load for 100 km
*** The torque wrench settings are given for non-lubricated threads; for lubricated threads, multiply figure by 0.8

• The guide rollers are complete with self-locking washers and hexagonal nut (DIN 439B) for fitting
• Pressure angle α for load calculation: 60°
• NBR seals, RS type

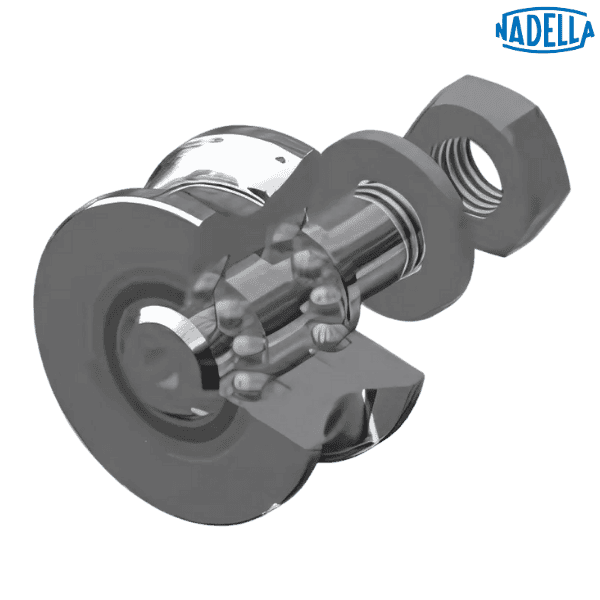

♦ ♦ Images are for representation purposes only
