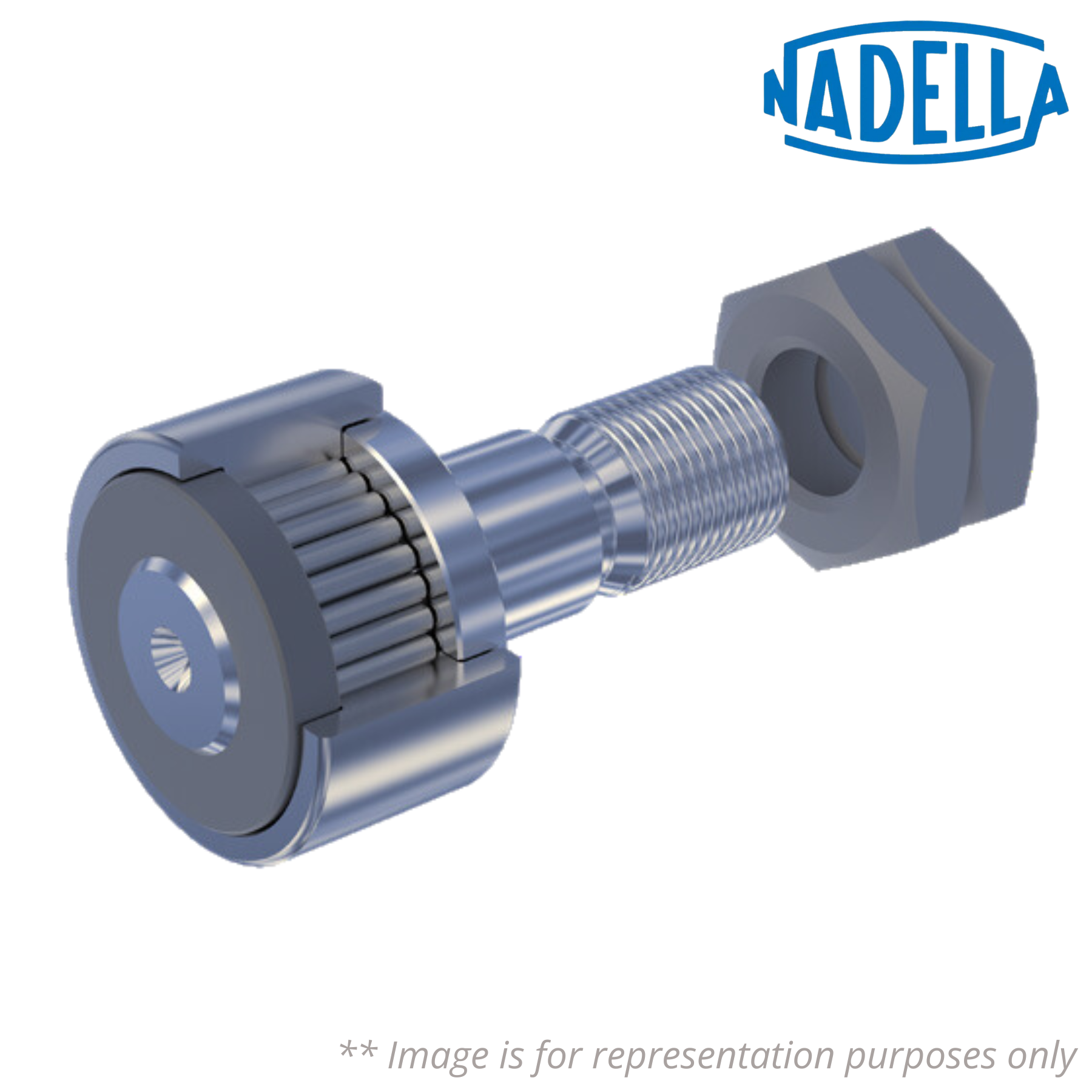

PFL 19 NADELLA

Brand - NADELLA
Item Number - PFL 19 NADELLA
Category - Cam Followers With Stud and Outer Cylindrical Ring
Also Known As - PFL19

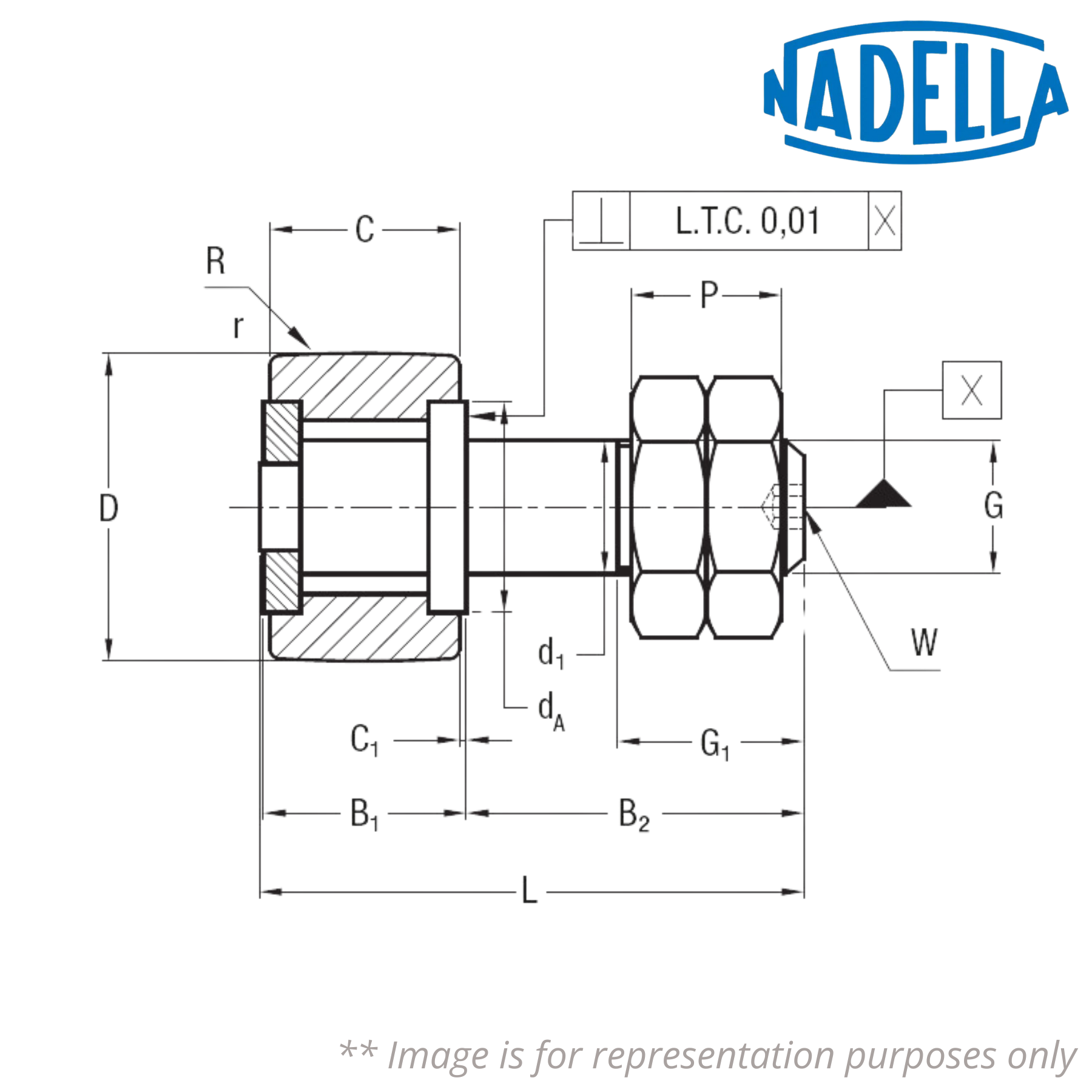

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 19 mm
Diameter of the Stud (d1) * - 10 mm
Dimension (L) - 36.5 mm
Dimension (B1) - 13 mm
Dimension (B2) - 23 mm
Threading (G) - M10 x 1.25
Dimension (G1) - 12 mm
Dimension (C) - 12 mm
Dimension (C1) - 0.5 mm
Dimension (dA) - 15.3 mm
Dimension (r) - 1 mm
Dimension (W) - 4 mm
Dimension (P) - 10 mm
Load Coefficients (Cw) - 6300 N
Dynamic Load Limit (Fr) - 5300 N
Static Load Limit (For) - 7900 N
Speed Limit with Grease - 7600 RPM
Weight - 0.046 kg
Clamping Torque - 20 Nm

Description of Prefix:
PFL - cam follower with stud and outer cylindrical ring

Other salient points to be noted:
* The diameter of the stud is calculated with h6 tolerance. Greasing holes are not foreseen

♦♦ Images are for representation purposes only
