PFL 11 NADELLA

Brand - NADELLA
Item Number - PFL 11 NADELLA
Category - Cam Followers With Stud and Outer Cylindrical Ring
Also Known As - PFL11

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 11 mm
Diameter of the Stud (d1) * - 6 mm
Dimension (L) - 26.5 mm
Dimension (B1) - 10 mm
Dimension (B2) - 16 mm
Threading (G) - M6 x 1
Dimension (G1) - 8 mm
Dimension (C) - 9 mm
Dimension (C1) - 0.5 mm
Dimension (dA) - 8.5 mm
Dimension (r) - 0.5 mm
Dimension (W) - 3 mm
Dimension (P) - 6.4 mm
Load Coefficients (Cw) - 2900 N
Dynamic Load Limit (Fr) - 1500 N
Static Load Limit (For) - 2800 N
Speed Limit with Grease - 13000 RPM
Weight - 0.013 kg
Clamping Torque - 3 Nm

Description of Prefix:

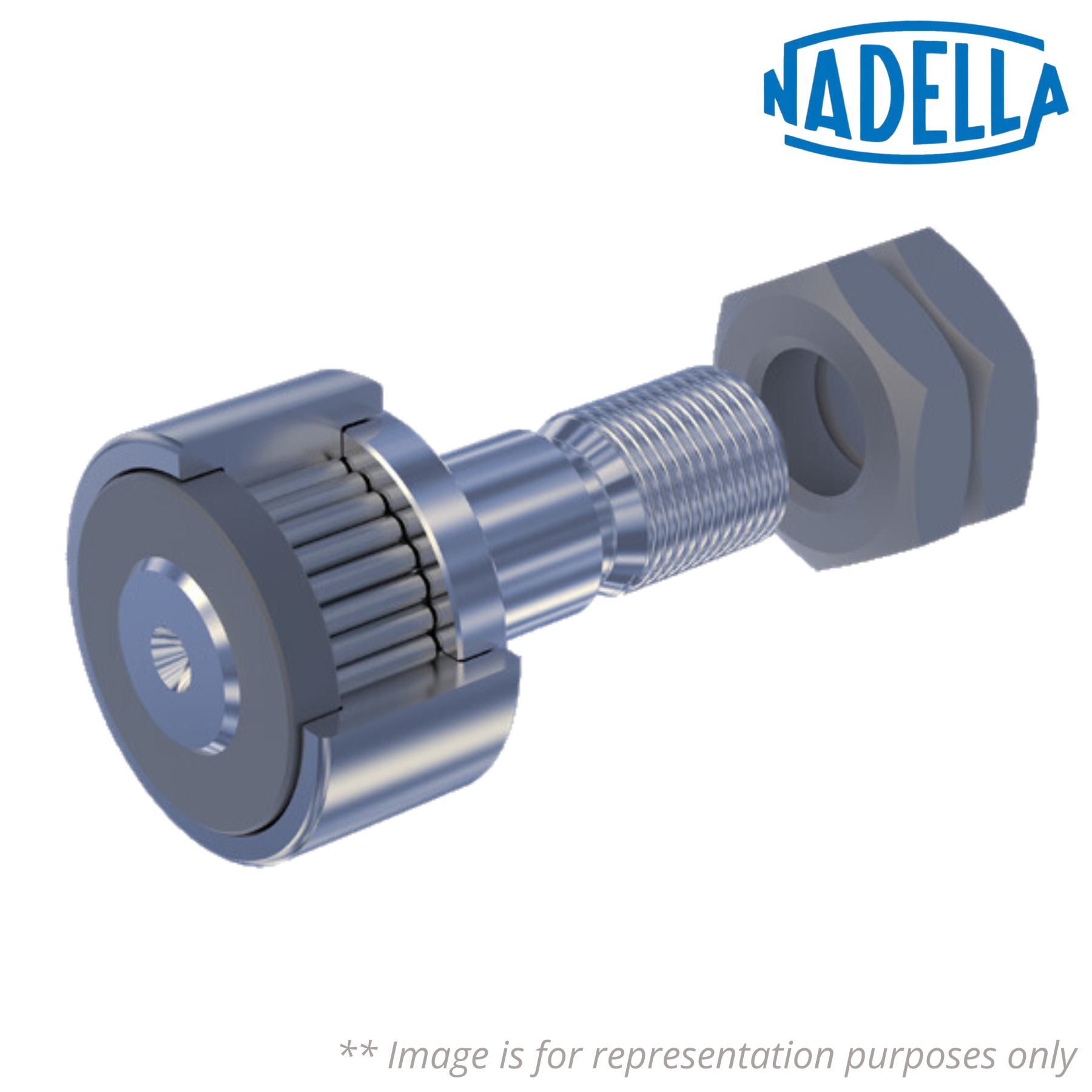

PFL - cam follower with stud and outer cylindrical ring

Other salient points to be noted:
* The diameter of the stud is calculated with h6 tolerance. Greasing holes are not foreseen

♦♦ Images are for representation purposes only
