PF 16 NADELLA

Brand - NADELLA
Item Number - PF 16 NADELLA
Category - Cam Followers With Stud and Outer Convex Ring
Also Known As - PF16

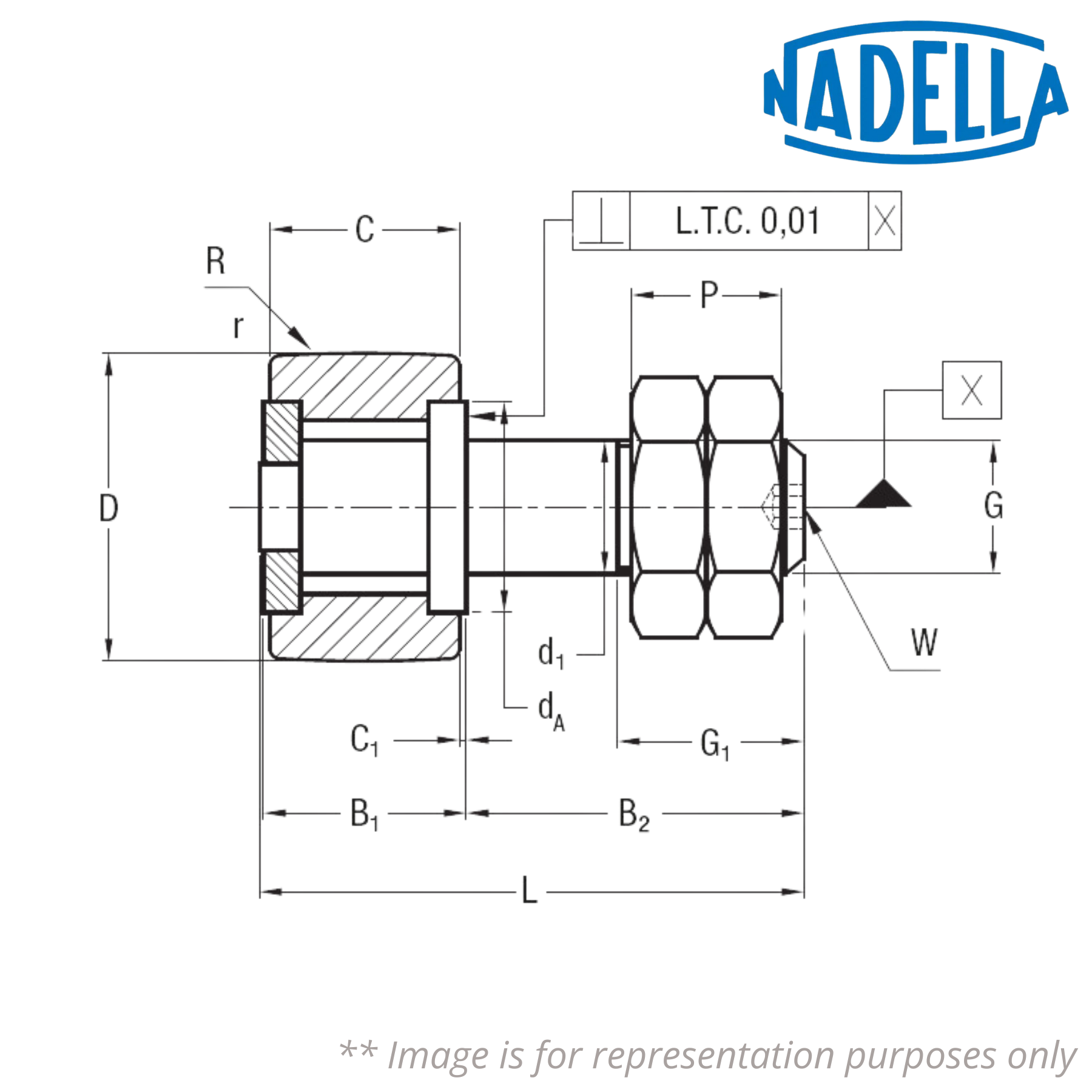

Principal Dimensions & Load Ratings (Metric):
Outer Diameter (D) - 16 mm
Diameter of the Stud (d1) * - 8 mm
Dimension (L) - 32.5 mm
Dimension (B1) - 12 mm
Dimension (B2) - 20 mm
Threading (G) - M8 x 1.25
Dimension (G1) - 10 mm
Dimension (C) - 11 mm
Dimension (C1) - 0.5 mm
Dimension (dA) - 13.3 mm
Dimension (r) - 1 mm
Convex Radius (R) ** - 800 mm
Dimension (W) - 3 mm
Dimension (P) - 8 mm
Load Coefficients (Cw) - 4900 N
Dynamic Load Limit (Fr) - 2900 N
Static Load Limit (For) - 5400 N
Speed Limit with Grease - 9300 RPM
Weight - 0.031 kg
Clamping Torque - 8 Nm

Description of Prefix:
PF - Cam Follower with Stud and Outer Convex Ring

Other salient points to be noted:
* The diameter of the stud is calculated with h6 tolerance. Greasing holes are not foreseen
** Convex radius for PF version

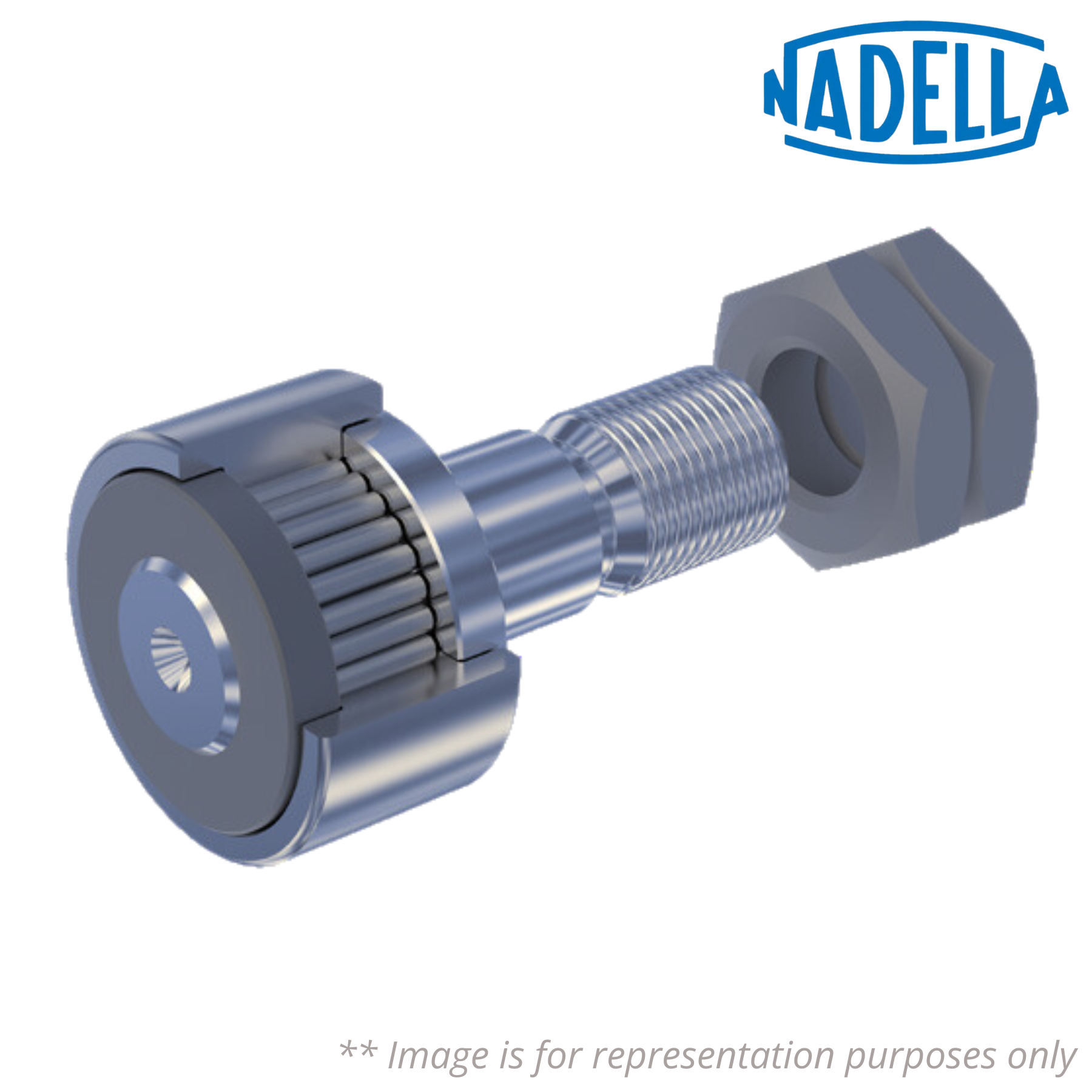

♦♦ Images are for representation purposes only
