Description
Brand - ZEN
Item Number - P6002-SB ZEN
Category - Plastic Bearings
Ball Type - stainless steel ball
Edge Type - standard

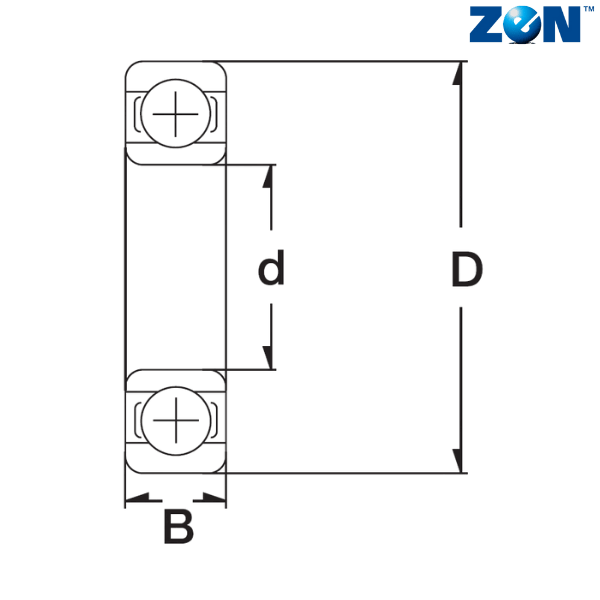

Inner Ring Dimension (d) mm - 15
Tolerance of Inner Ring (mm) - (0,+0.12)
Outer Ring Dimension (D) mm - 32
Tolerance of Outer Ring (mm) - (0,-0.12)
Width (B) mm - 9
Tolerance of Width (mm) - (0,-0.15)
Dynamic Load Rating (N) - 127
Outer Ring Material - POM
Inner Ring Material - POM
** Images are for representation purposes only
