Description
Brand - ZEN
Item Number - P6001-GB ZEN
Category - Plastic Bearings
Ball Type - Glass ball
Edge Type - standard

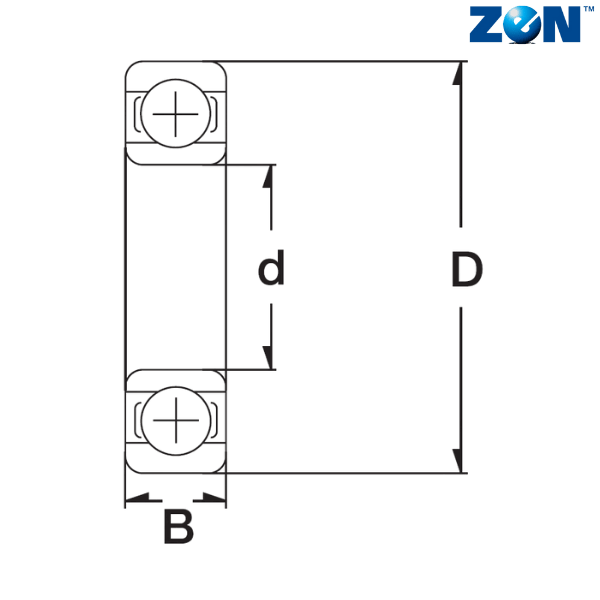

Inner Ring Dimension (d) mm - 12
Tolerance of Inner Ring (mm) - (0,+0.12)
Outer Ring Dimension (D) mm - 28
Tolerance of Outer Ring (mm) - (0,-0.12)
Width (B) mm - 8
Tolerance of Width (mm) - (0,-0.15)
Dynamic Load Rating (N) - 118
Weight (kg) - 0.004
Outer Ring Material - POM
Inner Ring Material - POM
** Images are for representation purposes only
