Description
Brand - BECO
Item Number - P 215 SS BECO
Category - Housing in Stainless Steel (not Magnetic)

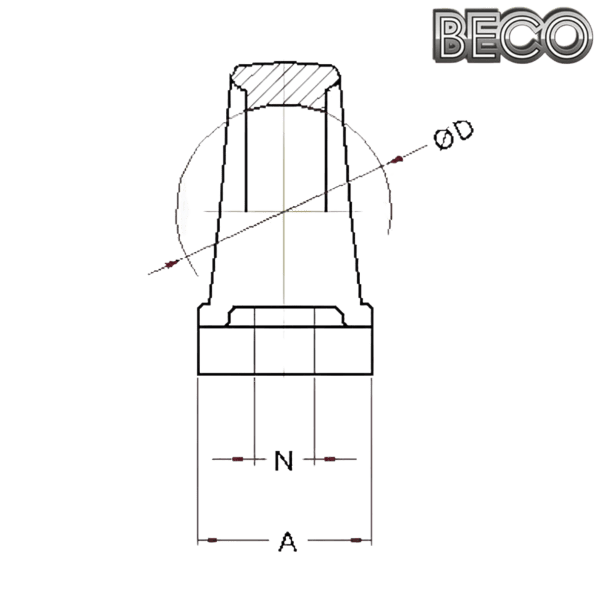

Diameter (D) mm - 130
Maximum Dimension (L) mm - 300
Dimension (J) mm - 217
Maximum Dimension (A) mm - 83
Dimension (H) mm - 162
Maximum Dimension (H1) mm - 35
Dimension (H2) mm - 82.6
Dimension (N) mm - 22.8 ± 1.8
Dimension (N1) mm - 24
* Weight (kg) - 3.17
----------------------------------------------
Housing + Bearing = Bearing Unit
----------------------------------------------
P 215 SS + UC 215 BHTS ZZ C4 200° = UCP 215 BHTS ZZ C4 200°
P 215 SS + UC 215 BHTS 2RS VT 250°-280° = UCP 215 BHTS 2RS VT 250°-280°
P 215 SS + UC 215 BHTS ZZ 280° = UCP 215 BHTS ZZ 280°
P 215 SS + UC 215 BHTS ZZ 350° Beco Plus = UCP 215 BHTS ZZ 350° Beco Plus
P 215 SS + UC 215 BHTS ZZ GR CG 350° = UCP 215 BHTS ZZ GR CG 350°
P 215 SS + UC 215 BSS 2RS NSF H1 = UCP 215 BSS 2RS NSF H1
Note
* Weight for housings is indicative. The production is made from Stainless steel Casting and weight depends from the condition of the moulding
** Images are for representation purposes only
