Description
Brand - BECO
Item Number - P 214 SS BECO
Category - Housing in Stainless Steel (not Magnetic)

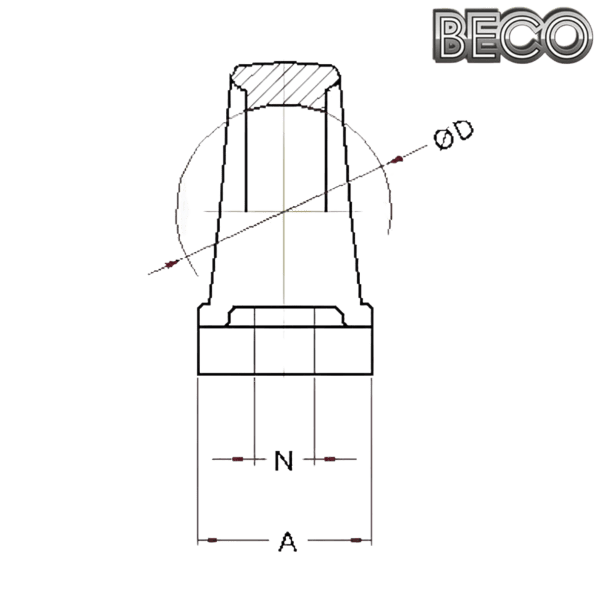

Diameter (D) mm - 125
Maximum Dimension (L) mm - 274
Dimension (J) mm - 210
Maximum Dimension (A) mm - 74
Dimension (H) mm - 156
Maximum Dimension (H1) mm - 34
Dimension (H2) mm - 79.4
Dimension (N) mm - 22.8 ± 1.8
Dimension (N1) mm - 24
* Weight (kg) - 2.69
----------------------------------------------
Housing + Bearing = Bearing Unit
----------------------------------------------
P 214 SS + UC 214 BHTS ZZ C4 200° = UCP 214 BHTS ZZ C4 200°
P 214 SS + UC 214 BHTS 2RS VT 250°-280° = UCP 214 BHTS 2RS VT 250°-280°
P 214 SS + UC 214 BHTS ZZ 280° = UCP 214 BHTS ZZ 280°
P 214 SS + UC 214 BHTS ZZ 350° Beco Plus = UCP 214 BHTS ZZ 350° Beco Plus
P 214 SS + UC 214 BHTS ZZ GR CG 350° = UCP 214 BHTS ZZ GR CG 350°
P 214 SS + UC 214 BSS 2RS NSF H1 = UCP 214 BSS 2RS NSF H1
Note
* Weight for housings is indicative. The production is made from Stainless steel Casting and weight depends from the condition of the moulding
** Images are for representation purposes only
