Description
Brand - BECO
Item Number - P 212 SS BECO
Category - Housing in Stainless Steel (not Magnetic)

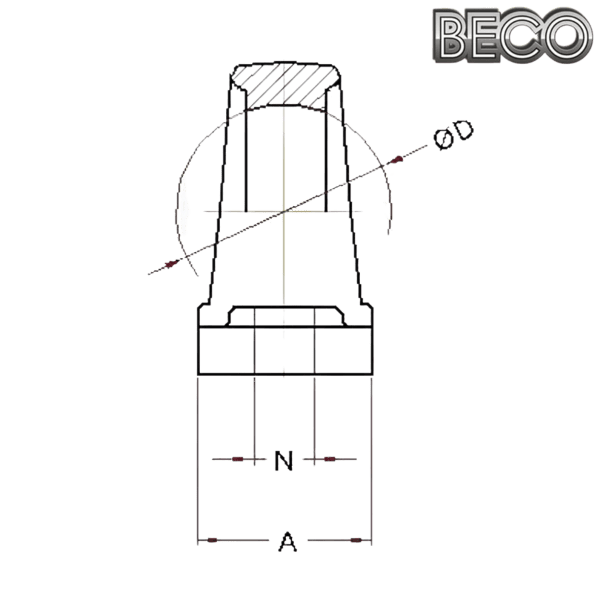

Diameter (D) mm - 110
Maximum Dimension (L) mm - 243
Dimension (J) mm - 186
Maximum Dimension (A) mm - 71
Dimension (H) mm - 138
Maximum Dimension (H1) mm - 27
Dimension (H2) mm - 69.9
Dimension (N) mm - 18.0 ± 1.0
Dimension (N1) mm - 24
* Weight (kg) - 2.09
----------------------------------------------
Housing + Bearing = Bearing Unit
----------------------------------------------
P 212 SS + UC 212 BHTS ZZ C4 200° = UCP 212 BHTS ZZ C4 200°
P 212 SS + UC 212 BHTS 2RS VT 250°-280° = UCP 212 BHTS 2RS VT 250°-280°
P 212 SS + UC 212 BHTS ZZ 280° = UCP 212 BHTS ZZ 280°
P 212 SS + UC 212 BHTS ZZ 350° Beco Plus = UCP 212 BHTS ZZ 350° Beco Plus
P 212 SS + UC 212 BHTS ZZ GR CG 350° = UCP 212 BHTS ZZ GR CG 350°
P 212 SS + UC 212 BSS 2RS NSF H1 = UCP 212 BSS 2RS NSF H1
Note
* Weight for housings is indicative. The production is made from Stainless steel Casting and weight depends from the condition of the moulding
** Images are for representation purposes only
