Description
Brand - BECO
Item Number - P 210 SS BECO
Category - Housing in Stainless Steel (not Magnetic)

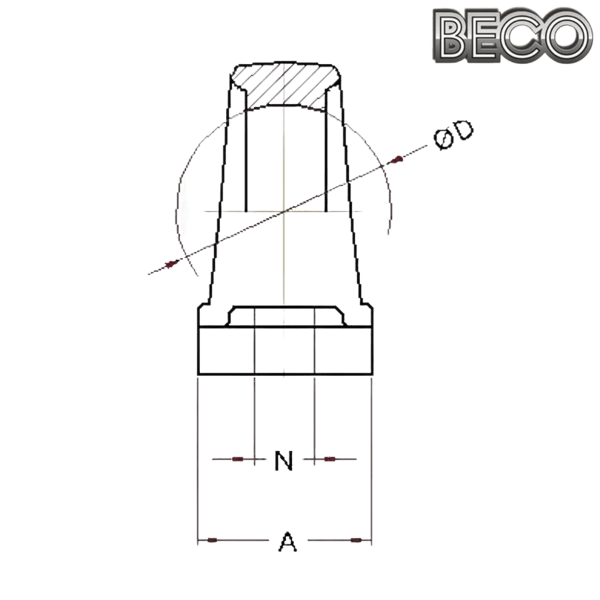

Diameter (D) mm - 90
Maximum Dimension (L) mm - 208
Dimension (J) mm - 159
Maximum Dimension (A) mm - 61
Dimension (H) mm - 114
Maximum Dimension (H1) mm - 23
Dimension (H2) mm - 57.2
Dimension (N) mm - 18.0 ± 1.0
Dimension (N1) mm - 20
* Weight (kg) - 1.38
----------------------------------------------
Housing + Bearing = Bearing Unit
----------------------------------------------
P 210 SS + UC 210 BHTS ZZ C4 200° = UCP 210 BHTS ZZ C4 200°
P 210 SS + UC 210 BHTS 2RS VT 250°-280° = UCP 210 BHTS 2RS VT 250°-280°
P 210 SS + UC 210 BHTS ZZ 280° = UCP 210 BHTS ZZ 280°
P 210 SS + UC 210 BHTS ZZ 350° Beco Plus = UCP 210 BHTS ZZ 350° Beco Plus
P 210 SS + UC 210 BHTS ZZ GR CG 350° = UCP 210 BHTS ZZ GR CG 350°
P 210 SS + UC 210 BSS 2RS NSF H1 = UCP 210 BSS 2RS NSF H1
Note
* Weight for housings is indicative. The production is made from Stainless steel Casting and weight depends from the condition of the moulding
** Images are for representation purposes only
