Description
Brand - BECO
Item Number - P 206 SS BECO
Category - Housing in Stainless Steel (not Magnetic)

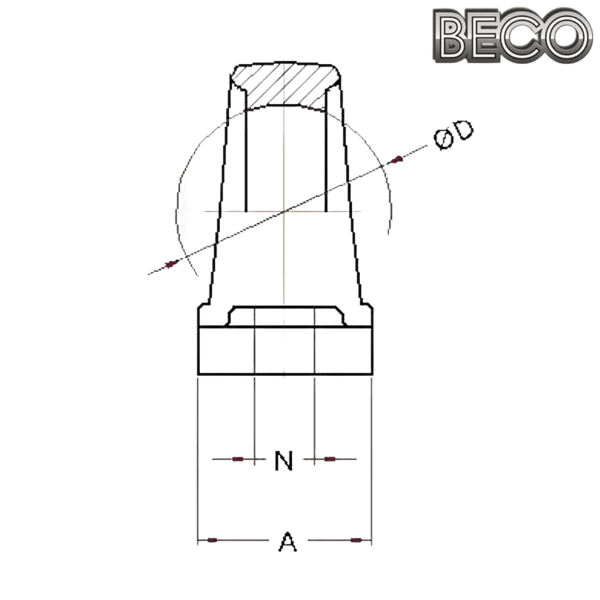

Diameter (D) mm - 62
Maximum Dimension (L) mm - 167
Dimension (J) mm - 121
Maximum Dimension (A) mm - 48
Dimension (H) mm - 83
Maximum Dimension (H1) mm - 20
Dimension (H2) mm - 42.9
Dimension (N) mm - 14.0 ± 1.0
Dimension (N1) mm - 19
* Weight (kg) - 0.6
----------------------------------------------
Housing + Bearing = Bearing Unit
----------------------------------------------
P 206 SS + UC 206 BHTS ZZ C4 200° = UCP 206 BHTS ZZ C4 200°
P 206 SS + UC 206 BHTS 2RS VT 250°-280° = UCP 206 BHTS 2RS VT 250°-280°
P 206 SS + UC 206 BHTS ZZ 280° = UCP 206 BHTS ZZ 280°
P 206 SS + UC 206 BHTS ZZ 350° Beco Plus = UCP 206 BHTS ZZ 350° Beco Plus
P 206 SS + UC 206 BHTS ZZ GR CG 350° = UCP 206 BHTS ZZ GR CG 350°
P 206 SS + UC 206 BSS 2RS NSF H1 = UCP 206 BSS 2RS NSF H1
Note
* Weight for housings is indicative. The production is made from Stainless steel Casting and weight depends from the condition of the moulding
** Images are for representation purposes only
