P 204 SS BECO

Brand - BECO
Item Number - P 204 SS BECO
Category - Housing in Stainless Steel (not Magnetic)

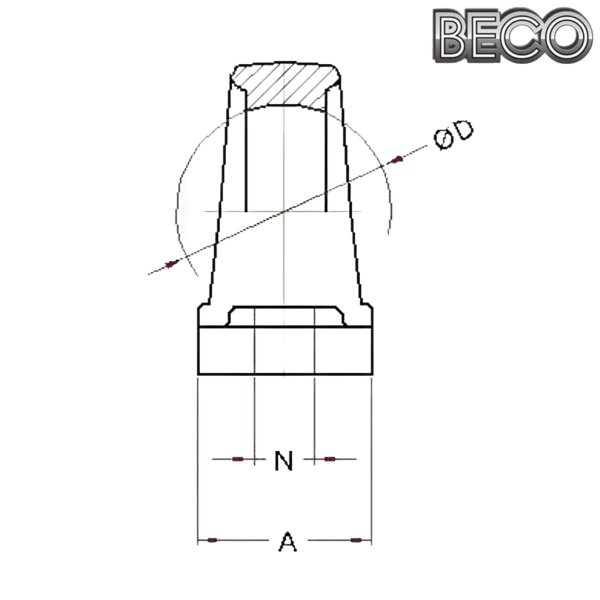

Diameter (D) mm - 47
Maximum Dimension (L) mm - 134
Dimension (J) mm - 96
Maximum Dimension (A) mm - 39
Dimension (H) mm - 65
Maximum Dimension (H1) mm - 17
Dimension (H2) mm - 33.3
Dimension (N) mm - 11.5 ± 1.0
Dimension (N1) mm - 16
* Weight (kg) - 0.36

----------------------------------------------
Housing + Bearing = Bearing Unit
----------------------------------------------
P 204 SS + UC 201 BHTS ZZ C4 200° = UCP 201 BHTS ZZ C4 200°
P 204 SS + UC 202 BHTS ZZ C4 200° = UCP 202 BHTS ZZ C4 200°
P 204 SS + UC 203 BHTS ZZ C4 200° = UCP 203 BHTS ZZ C4 200°
P 204 SS + UC 204 BHTS ZZ C4 200° = UCP 204 BHTS ZZ C4 200°
P 204 SS + UC 201 BHTS 2RS VT 250°-280° = UCP 201 BHTS 2RS VT 250°-280°
P 204 SS + UC 202 BHTS 2RS VT 250°-280° = UCP 202 BHTS 2RS VT 250°-280°
P 204 SS + UC 203 BHTS 2RS VT 250°-280° = UCP 203 BHTS 2RS VT 250°-280°
P 204 SS + UC 204 BHTS 2RS VT 250°-280° = UCP 204 BHTS 2RS VT 250°-280°
P 204 SS + UC 201 BHTS ZZ 280° = UCP 201 BHTS ZZ 280°
P 204 SS + UC 202 BHTS ZZ 280° = UCP 202 BHTS ZZ 280°
P 204 SS + UC 203 BHTS ZZ 280° = UCP 203 BHTS ZZ 280°
P 204 SS + UC 204 BHTS ZZ 280° = UCP 204 BHTS ZZ 280°
P 204 SS + UC 201 BHTS ZZ 350° Beco Plus = UCP 201 BHTS ZZ 350° Beco Plus
P 204 SS + UC 202 BHTS ZZ 350° Beco Plus = UCP 202 BHTS ZZ 350° Beco Plus
P 204 SS + UC 203 BHTS ZZ 350° Beco Plus = UCP 203 BHTS ZZ 350° Beco Plus
P 204 SS + UC 204 BHTS ZZ 350° Beco Plus = UCP 204 BHTS ZZ 350° Beco Plus
P 204 SS + UC 201 BHTS ZZ GR CG 350° = UCP 201 BHTS ZZ GR CG 350°
P 204 SS + UC 202 BHTS ZZ GR CG 350° = UCP 202 BHTS ZZ GR CG 350°
P 204 SS + UC 203 BHTS ZZ GR CG 350° = UCP 203 BHTS ZZ GR CG 350°
P 204 SS + UC 204 BHTS ZZ GR CG 350° = UCP 204 BHTS ZZ GR CG 350°
P 204 SS + UC 201 BSS 2RS NSF H1 = UCP 201 BSS 2RS NSF H1
P 204 SS + UC 202 BSS 2RS NSF H1 = UCP 202 BSS 2RS NSF H1
P 204 SS + UC 203 BSS 2RS NSF H1 = UCP 203 BSS 2RS NSF H1
P 204 SS + UC 204 BSS 2RS NSF H1 = UCP 204 BSS 2RS NSF H1

Note

* Weight for housings is indicative. The production is made from Stainless steel Casting and weight depends from the condition of the moulding

** Images are for representation purposes only
