Description
| Technical data |
| Functional Principle | Piston pump |
| Lubricant Volume (VLub) |
60 / 125 cm³
|
| Metering Volume per Lubrication Interval |
≈ 0,5 cm³
|
| Metering Volume per Day |
0,17 – 8,3 cm³
|
| Operating Pressure, Maximum (pop) |
10 bar
|
| Lubricant |
≤ NLGI 2 (suitability test required)
|
|
Number of Outlets (nout)
|
1
|
| Number of Lubrication Points: Direct |
1
|
| Operating Voltage (Uop) |
6-V alkaline battery
|
| Controller (Integrated) |
OPTIME
|
| Monitoring: Fill Level |
via OPTIME
|
| Dispensing Time Cartridge |
1 up to 12 months
|
| Error Message |
Empty level, back pressure, internal error: via OPTIME
|
| Commissioning |
NFC
|
| Wirepas Mesh (ISM Band) |
2.4 GHz
|
|
Line of Sight Range
|
100000 mm
|
|
Protection Class
|
IP68
|
| Housing Material |
Polyethylenterephthalat (PET)
|
| Operating Temperature, Minimum (tmin) |
-10 °C
|
| Operating Temperature, Maximum (tmax) |
55 °C
|
| Mounting Position |
arbitrary
|
| Connection Thread |
G¼
|

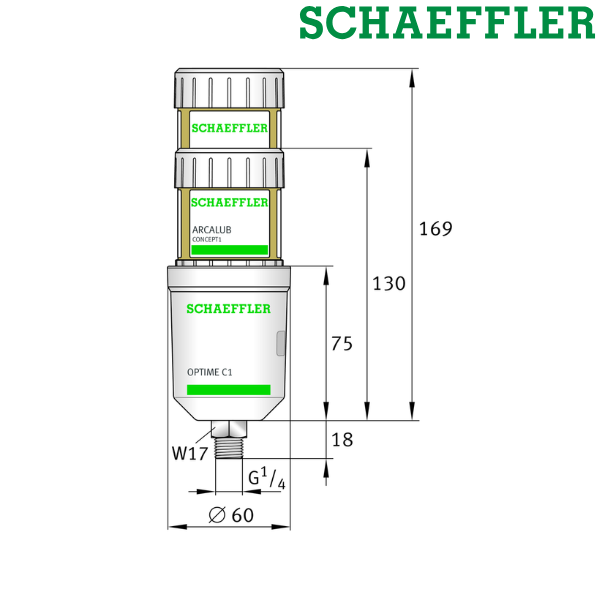

| Dimensions (mm) |
60 x 60 x 93
|
| Weight (≈m) |
0.26 kg
|
