Description
Brand - OAV
Item Number - OAVTR60i20 OAV
Category - Thrust Air Bushings
Housing Material/Finish - 7075 Aircraft Quality Aluminum/Mil Spec Hard Anodize
Lifetime - Infinite
Porous Material - Carbon
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Radial Load Capacity (lbs) - 11.7
Thrust Load Capacity (lbs) - 84
Radial Stiffness (lbs/μin) - 0.03
Maximum Pitch Moment (lbs-in) - 10
Flow Rate (SCFH) - 15.6
Metric :
Size (mm) - 20
Pressure Port Threads - M5 x 0.8
Radial Load Capacity (N) - 52
Thrust Load Capacity (N) - 373.7
Radial Stiffness (N/μm) - 5
Maximum Pitch Moment (N-m) - 1.1
Bushing Inside Diameter (mm) - 20.018 (+ .005/-.000)
Bushing Outside Diameter (mm) - 59.59 (+ .13/-.00)
Bushing Length (mm) - 16.5
Bushing Weight (kg) - 0.0957
Recommended Shaft Outside Diameter (mm) - 20 (- .02)
Flow Rate (NLPM) - 7.4

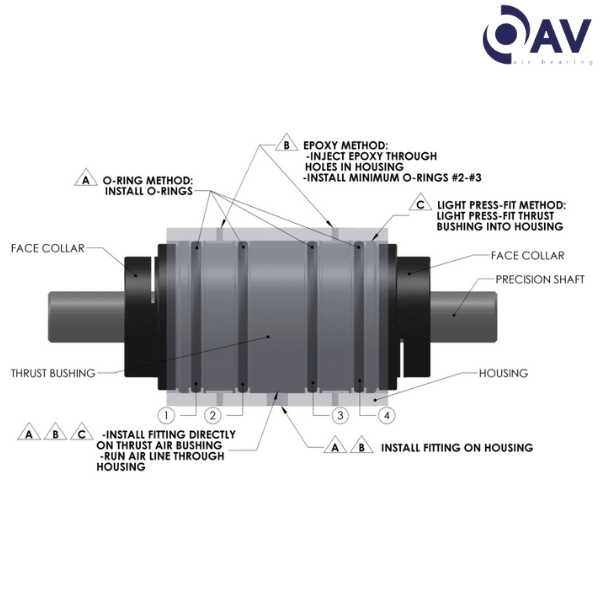

Housing Bore Size Light Press Fit Method (mm) - 59.630 (+ .000/-.025)
** Images are for representation purposes only
