Description
Brand - OAV

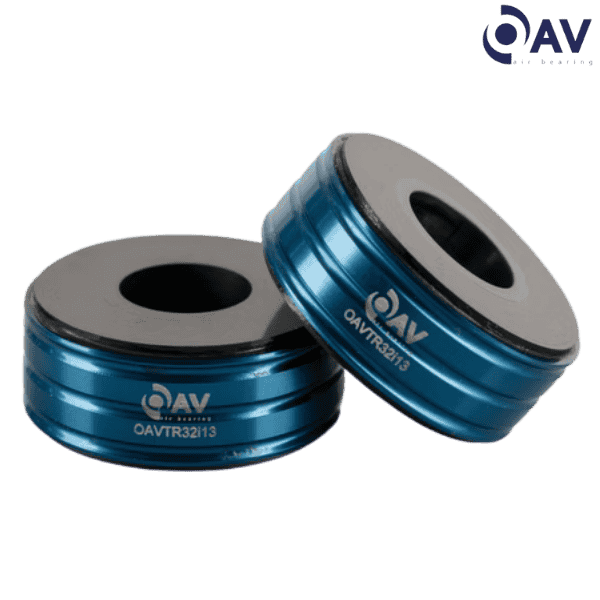

Item Number - OAVTR32i13 OAV
Category - Thrust Air Bushings
Housing Material/Finish - 7075 Aircraft Quality Aluminum
Lifetime - Infinite
Porous Material - Carbon
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Radial Load Capacity (lbs) - 2.4
Thrust Load Capacity (lbs) - 18.3
Radial Stiffness (lbs/μin) - 0.01
Maximum Pitch Moment (lbs-in) - 7.5
Flow Rate (SCFH) - 8.1
Metric :
Size (mm) - 13
Pressure Port Threads - M3 x 0.5
Radial Load Capacity (N) - 10.7
Thrust Load Capacity (N) - 81.4
Radial Stiffness (N/μm) - 2.6
Maximum Pitch Moment (N-m) - 0.8

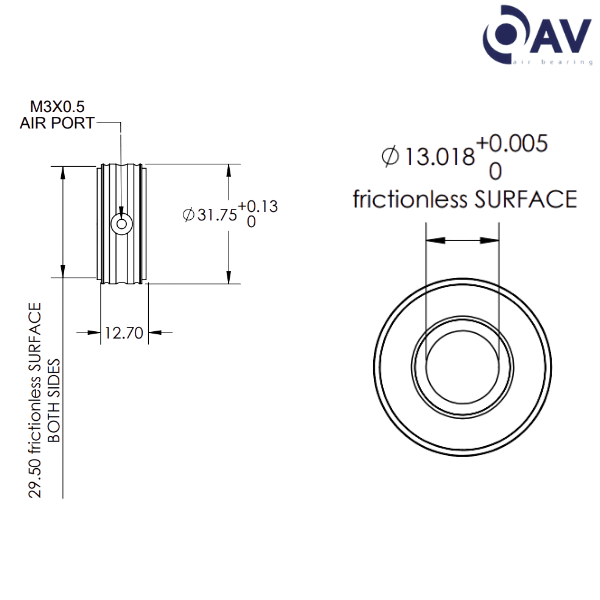

Bushing Inside Diameter (mm) - 13.018 (+ .005/-.000)
Bushing Outside Diameter (mm) - 31.75 (+ .13/-.00)
Bushing Length (mm) - 12.7
Bushing Weight (kg) - 0.0128
Recommended Shaft Outside Diameter (mm) - 13 (- .02)
Flow Rate (NLPM) - 3.8

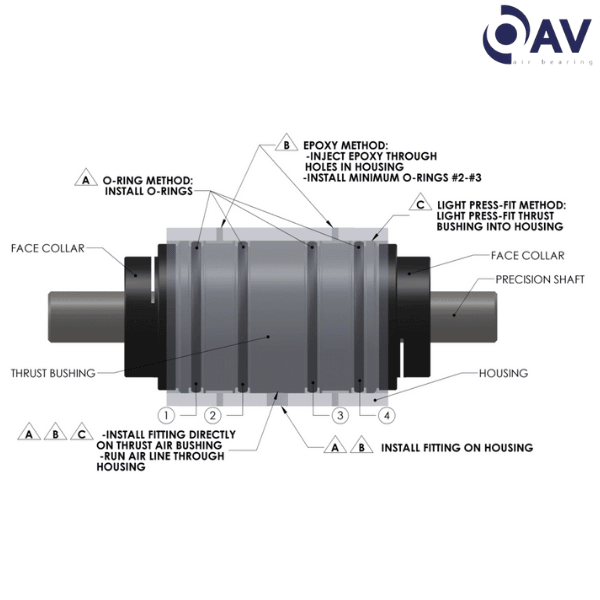

Housing Bore Size Light Press Fit Method (mm) - 31.775 (+ .000/-.025)
** Images are for representation purposes only
