Description
Brand - OAV
Item Number - OAVTPR13M OAV

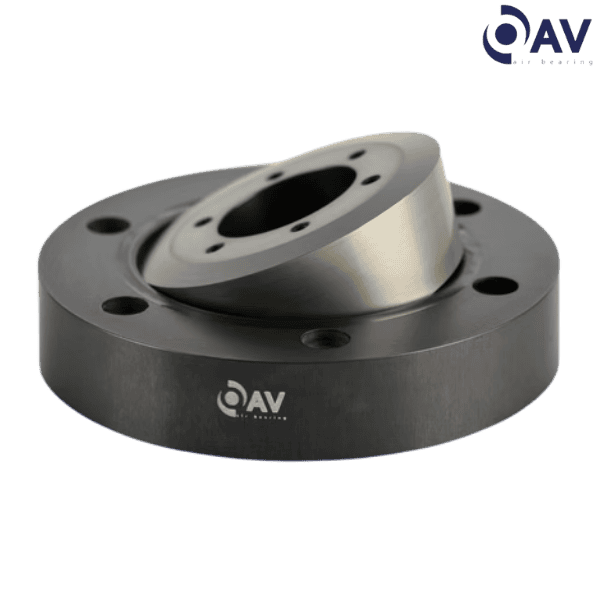

Category - Tapered Roller Air Bearing
Housing Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Side Material - 7075 Aircraft Quality Aluminum
Finishing - Mil Spec Hard Anodize
Porous Material - Carbon

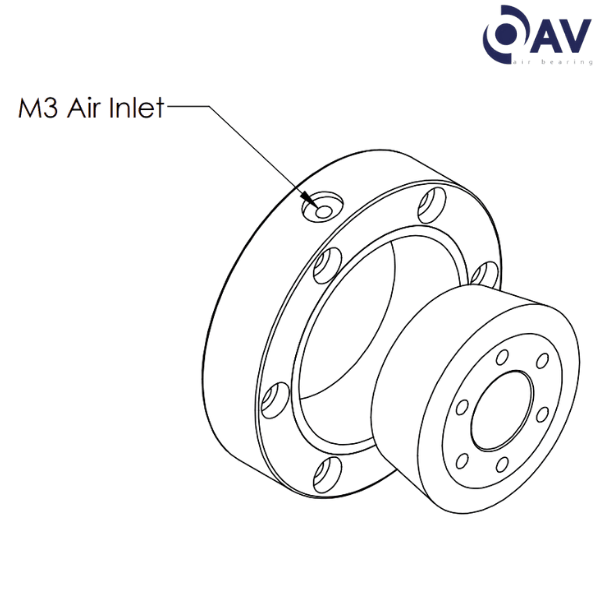

Pressure Port Threads - M3 x 0.8
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Radial Stiffness (lb/μ in) - 0.06
Maximum Pitch Moment (lbs-in) - 4.4
Maximum Radial Load (lbs) - 20.7
Maximum Axial Load (lbs) - 12.4
Total Indicated Runout [TIR] (millinths in) - ± 1
Axial and Radial Error Motion (μin) - 0.9
Weight (lb) - 0.148
Metric :
Inner Diameter (mm) - 13
Radial Stiffness (N/μ m) - 10.7
Maximum Pitch Moment (N-m) - 0.5
Maximum Radial Load (N) - 92.08
Maximum Axial Load (N) - 55.16
Total Indicated Runout [TIR] (µm) - 0.025
Axial and Radial Error Motion (µm) - 0.023

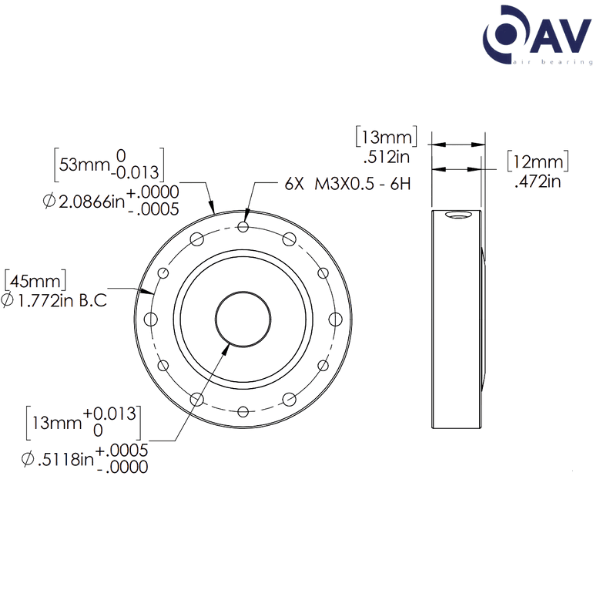

Bearings Inside Diameter (mm) - 13 (+0.013 to -0.000)
Bearings Outside Diameter (mm) - 53 (+0.00 to -0.013)
Bearing Width (mm) - 13
Weight (kg) - 0.067
Shaft Diameter (mm) - 13
Housing Bore size Light Press Fit Method (mm) - 53 (+0.0013 to -0.013)
Flow Rate (SCFH) - 3.68
**Images are for representation purposes only
