Description
Brand - OAV
Item Number - OAVTB60i25 OAV
Category - Thrust Air Bushings
Housing Material/Finish - 7075 Aircraft Quality Aluminum/Mil Spec Hard Anodize
Lifetime - Infinite
Porous Material - Carbon
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Radial Load Capacity (lbs) - 68.6
Thrust Load Capacity (lbs) - 68.1
Radial Stiffness (lbs/μin) - 0.19
Maximum Pitch Moment (lbs-in) - 17
Flow Rate (SCFH) - 14.8
Metric :
Size (mm) - 25
Pressure Port Threads - M5 x 0.8
Radial Load Capacity (N) - 305.1
Thrust Load Capacity (N) - 302.9
Radial Stiffness (N/μm) - 34
Maximum Pitch Moment (N-m) - 1.9
Bushing Inside Diameter (mm) - 25.018 (+ .005/-.000)
Bushing Outside Diameter (mm) - 59.59 (+ .13/-.00)
Bushing Length (mm) - 79.2
Bushing Weight (kg) - 0.4169
Recommended Shaft Outside Diameter (mm) - 25 (- .02)
Flow Rate (NLPM) - 7

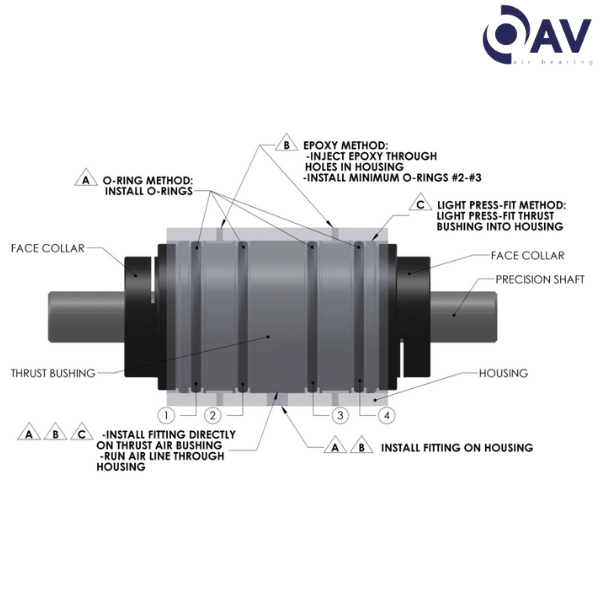

Housing Bore Size O-Ring Method (mm) - 59.97 (+ .000/-.127)
Housing Bore Size Light Press Fit Method (mm) - 59.630 (+ .000/-.035)
** Images are for representation purposes only
