Description
Brand - OAV
Item Number - OAVTB60i20W OAV
Category - Temperature Controlled Thrust Air Bearing
Housing Material/Finish - OAV Confidential
Porous Material - Carbon
Lifetime - Infinite
Cooling Type - Liquid or Cool Air flow
Temperature - TBD
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Radial Load Capacity (lbs) - 54.9
Thrust Load Capacity (lbs) - 84
Radial Stiffness (lbs/μin) - 0.13
Maximum Pitch Moment (lbs-in) - 10
Cooling Flow Rate (SCFH) - 52.3
Flow Rate (SCFH) - 15.6
Metric :
Size (mm) - 20
Pressure Port Threads - M3 x 0.5
Radial Load Capacity (N) - 240.2
Thrust Load Capacity (N) - 373.7
Radial Stiffness (N/μm) - 23
Bushing Inside Diameter (mm) - 20
Bushing Outside Diameter (mm) - 60
Bushing Length (mm) - 79.2
Bushing Weight (kg) - 0.435
Recommended Shaft Outside Diameter (mm) - 20 (- .02)
Flow Rate (NLPM) - 7.4

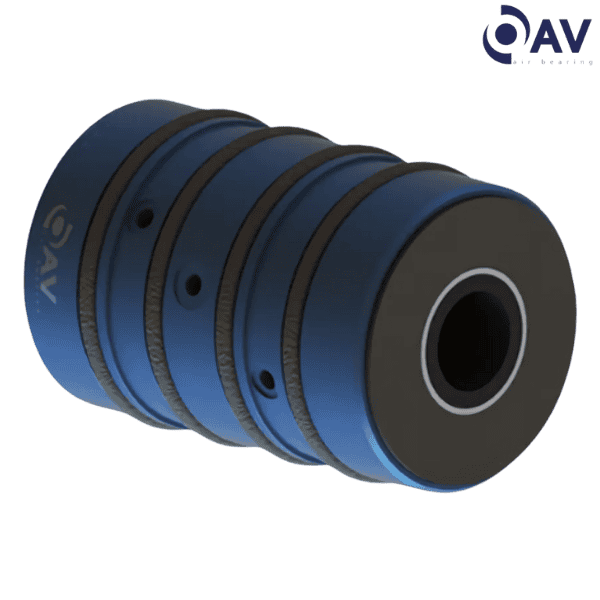

** Images are for representation purposes only
