Description
Brand - OAV
Item Number - OAVTB60i20 OAV
Category - Thrust Air Bushings
Housing Material/Finish - 7075 Aircraft Quality Aluminum/Mil Spec Hard Anodize
Lifetime - Infinite
Porous Material - Carbon
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Radial Load Capacity (lbs) - 54.9
Thrust Load Capacity (lbs) - 84
Radial Stiffness (lbs/μin) - 0.13
Maximum Pitch Moment (lbs-in) - 10
Flow Rate (SCFH) - 15.6
Metric :
Size (mm) - 20
Pressure Port Threads - M5 x 0.8
Radial Load Capacity (N) - 244.2
Thrust Load Capacity (N) - 373.7
Radial Stiffness (N/μm) - 23
Maximum Pitch Moment (N-m) - 1.1
Bushing Inside Diameter (mm) - 20.018 (+ .005/-.000)
Bushing Outside Diameter (mm) - 59.59 (+ .13/-.00)
Bushing Length (mm) - 79.2
Bushing Weight (kg) - 0.465
Recommended Shaft Outside Diameter (mm) - 20 (- .02)
Flow Rate (NLPM) - 7.4

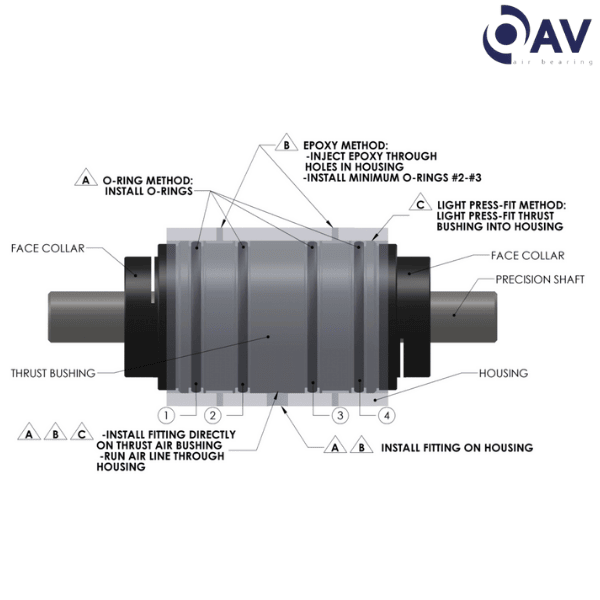

Housing Bore Size O-Ring Method (mm) - 59.97 (+ .000 /-.127)
Housing Bore Size Light Press Fit Method (mm) - 59.630 (+ .000/-.025)
** Images are for representation purposes only
