Description
Brand - OAV
Item Number - OAVTB32i13 OAV
Category - Thrust Air Bushings
Housing Material/Finish - 7075 Aircraft Quality Aluminum/Mil Spec Hard Anodize
Lifetime - Infinite
Porous Material - Carbon
Imperial :
Radial Load Capacity (lbs) - 9.7
Thrust Load Capacity (lbs) - 18.3
Radial Stiffness (lbs/μin) - 0.06
Maximum Pitch Moment (lbs-in) - 7.5
Metric :
Minimum Input Pressure (Mpa) - 0.28
Size (mm) - 13
Maximum Input Pressure (Mpa) - 0.68
Pressure Port Threads - M3 x 0.5
Radial Load Capacity (N) - 43.2
Thrust Load Capacity (N) - 81.4
Radial Stiffness (N/μm) - 11
Maximum Pitch Moment (N-m) - 0.8
Thrust Bushing Inside Diameter (mm) - 13.018 (+ .005/-.000)
Thrust Bushing Outside Diameter (mm) - 31.75 (+ .13/-.00)
Bushing Length (mm) - 52.8
Bushing Weight (kg) - 0.086
Recommended Shaft Outside Diameter (mm) - 13.00 (- .02)

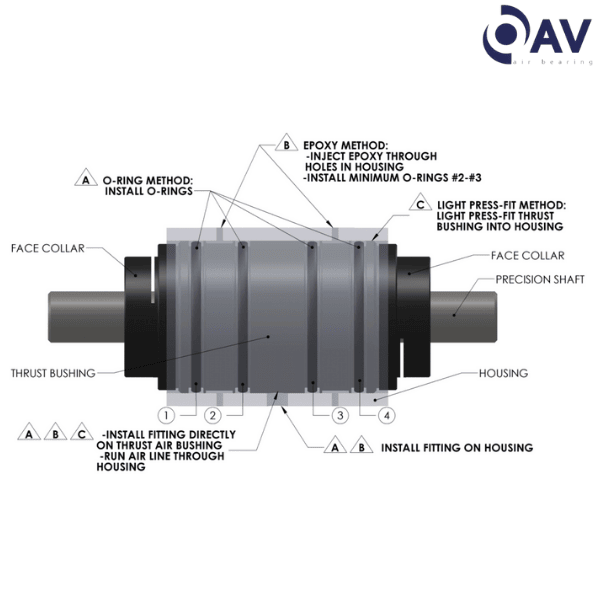

Housing Bore Size O-Ring Method (mm) - 32.13 (+ .000/-.127)
Housing Bore Size Light Press Fit Method (mm) - 31.775 (+ .000/-.025)

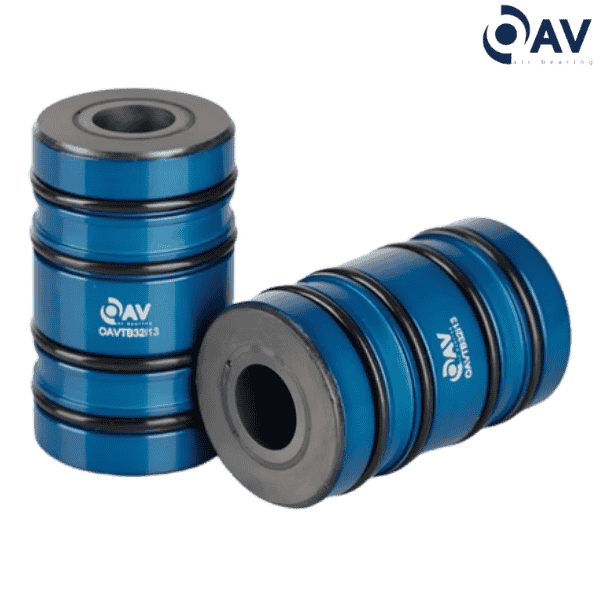

** Images are for representation purposes only
