Description
Brand - OAV
Item Number - OAVTB32i10 OAV
Category - Thrust Air Bushings
Housing Material/Finish - 7075 Aircraft Quality Aluminum/Mil Spec Hard Anodize
Lifetime - Infinite
Porous Material - Carbon
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Radial Load Capacity (lbs) - 7.5
Thrust Load Capacity (lbs) - 20
Radial Stiffness (lbs/μin) - 0.046
Maximum Pitch Moment (lbs-in) - 5.77
Flow Rate (SCFH) - 13
Metric :
Size (mm) - 10
Pressure Port Threads - M3 x 0.5
Radial Load Capacity (N) - 33.2
Thrust Load Capacity (N) - 89
Radial Stiffness (N/μm) - 8.5
Maximum Pitch Moment (N-m) - 0.62

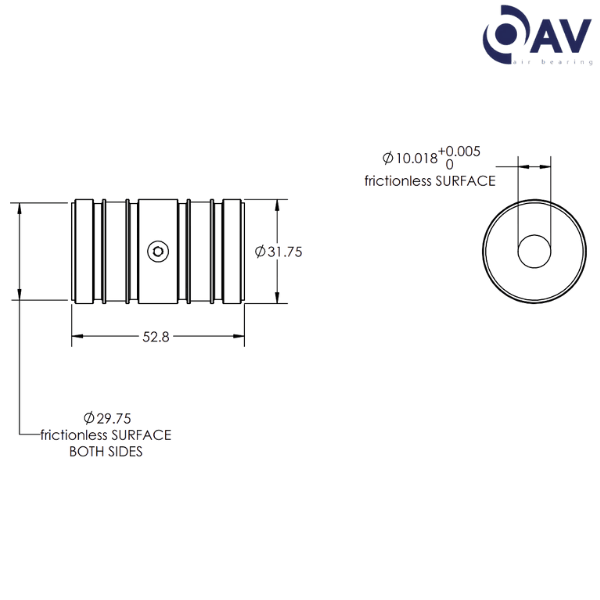

Bushing Inside Diameter (mm) - 10.018 (+ .005/-.000)
Bushing Outside Diameter (mm) - 31.75 (+ .13/-.00)
Bushing Length (mm) - 52.8
Bushing Weight (kg) - 0.086
Recommended Shaft Outside Diameter (mm) - 10.000 (+.000/-.018)
Flow Rate (NLPM) - 6.14

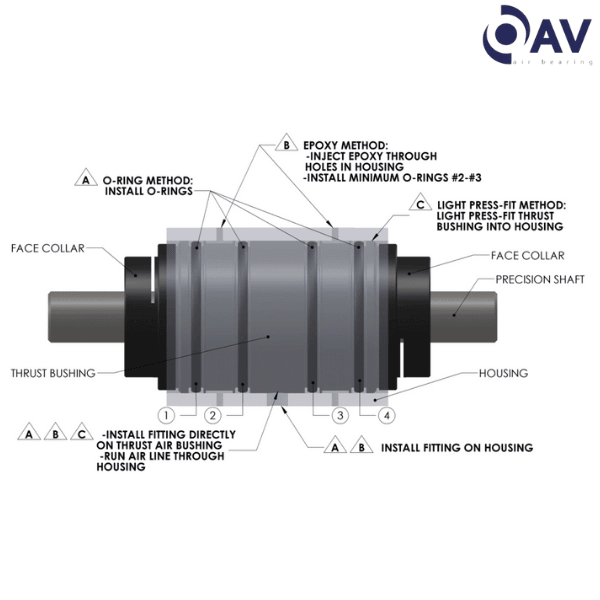

Housing Bore Size O-Ring Method (mm) - 32.13 (+ .000/-.127)
Housing Bore Size Light Press Fit Method (mm) - 31.775 (+ .000/-.025)

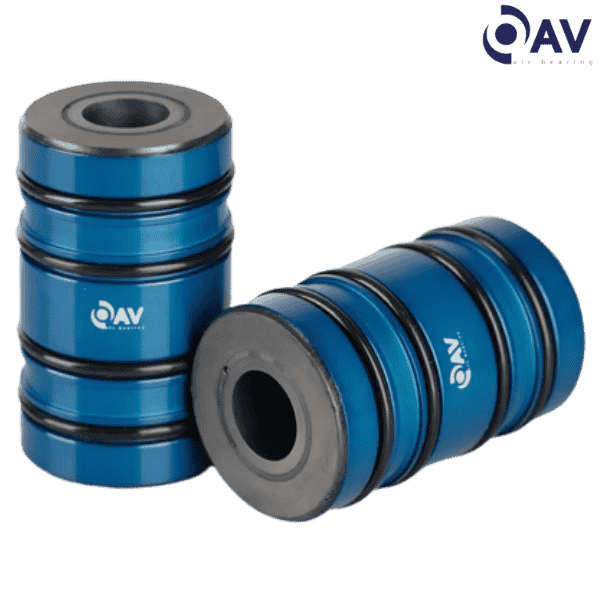

** Images are for representation purposes only
