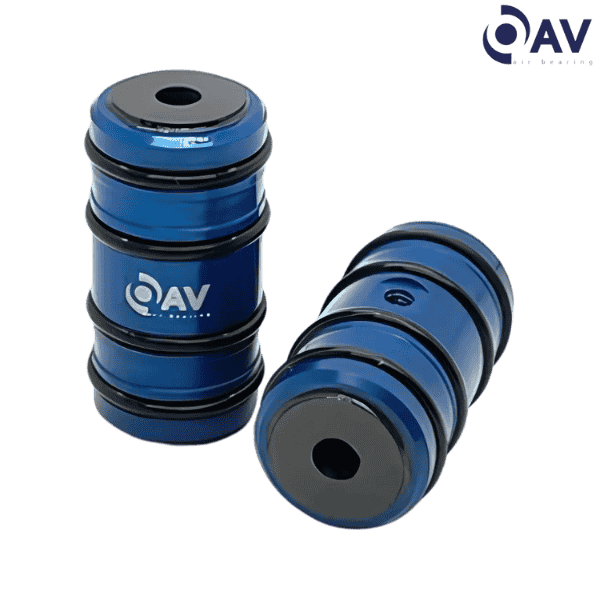

Description
Brand - OAV
Item Number - OAVTB24i06 OAV
Category - Thrust Air Bushings
Housing Material/Finish - 7075 Aircraft Quality Aluminum/Mil Spec Hard Anodize
Lifetime - Infinite
Porous Material - Carbon
Imperial :
Radial Load Capacity (lbs) - 4.7
Thrust Load Capacity (lbs) - 6.4
Radial Stiffness (lbs/μin) - 0.027
Maximum Pitch Moment (lbs-in) - 3.6
Flow Rate (SCFH) - 2.9
Metric :
Minimum Input Pressure (Mpa) - 0.28
Size (mm) - 6
Maximum Input Pressure (Mpa) - 0.68
Pressure Port Threads - M3 x 0.5
Radial Load Capacity (N) - 20.9
Thrust Load Capacity (N) - 28.4
Radial Stiffness (N/μm) - 5.1
Maximum Pitch Moment (N-m) - 0.4

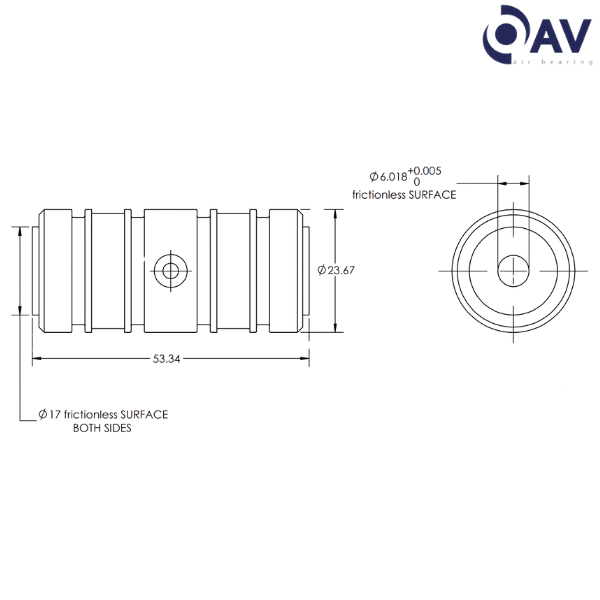

Thrust Bushing Inside Diameter (mm) - 6.018 (+ .005/-.000)
Thrust Bushing Outside Diameter (mm) - 23.67 (+ .13/-.00)
Bushing Length (mm) - 53.34
Bushing Weight (kg) - 0.0308
Recommended Shaft Outside Diameter (mm) - 6.00 (- .02)
** Images are for representation purposes only
