Description
Brand - OAV
Item Number - OAVTB16i04 OAV
Category - Thrust Air Bushings
Housing Material/Finish - 7075 Aircraft Quality Aluminum/Mil Spec Hard Anodize
Lifetime - Infinite
Porous Material - Carbon
Imperial :
Radial Load Capacity (lbs) - 2.1
Thrust Load Capacity (lbs) - 3.6
Radial Stiffness (lbs/μin) - 0.03
Maximum Pitch Moment (lbs-in) - 0.125
Metric :
Minimum Input Pressure (Mpa) - 0.28
Size (mm) - 4
Maximum Input Pressure (Mpa) - 0.68
Pressure Port Threads - M3 x 0.5
Radial Load Capacity (N) - 9.3
Thrust Load Capacity (N) - 16
Radial Stiffness (N/μm) - 5
Maximum Pitch Moment (N-m) - 0.013
Thrust Bushing Inside Diameter (mm) - 4.018 (+ .005/-.000)
Thrust Bushing Outside Diameter (mm) - 16.10 (+ .13/-.00)
Bushing Length (mm) - 33
Bushing Weight (kg) - 0.0138
Recommended Shaft Outside Diameter (mm) - 4.00 (- .02)

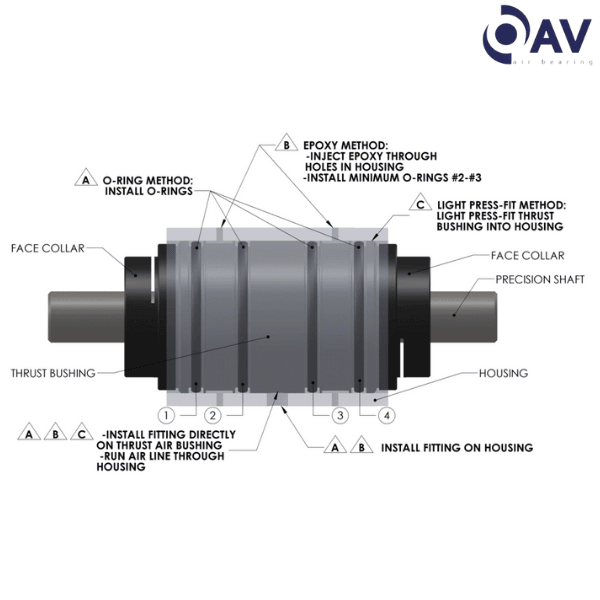

Housing Bore Size O-Ring Method (mm) - 16.79 (+ .000/-.127)
Housing Bore Size Light Press Fit Method (mm) - 16.125 (+ .000/ -.025)

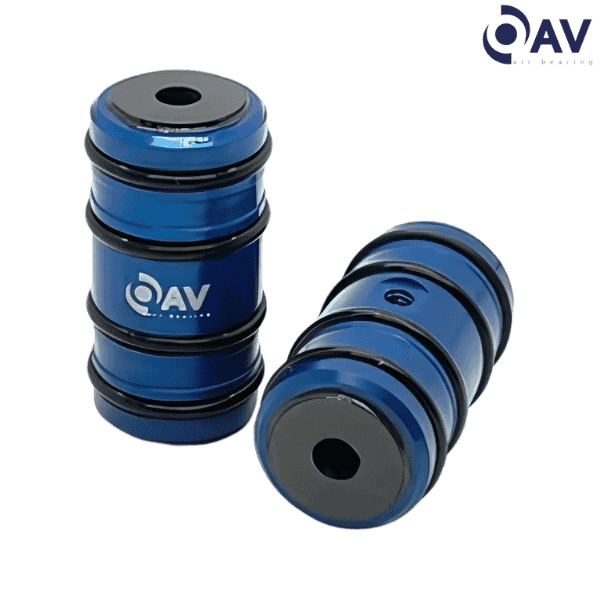

** Images are for representation purposes only
