Description
Brand - OAV
Item Number - OAVTB150i75 OAV
Category - Thrust Air Bushings
Housing Material/Finish - 7075 Aircraft Quality Aluminum/Mil Spec Hard Anodize
Lifetime - Infinite
Porous Material - Carbon
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Radial Load Capacity (lbs) - 293.8
Thrust Load Capacity (lbs) - 498
Radial Stiffness (lbs/μin) - 0.91
Maximum Pitch Moment (lbs-in) - 63
Flow Rate (SCFH) - 42.1
Metric :
Size (mm) - 75
Pressure Port Threads - M5 x 0.8
Radial Load Capacity (N) - 1306.9
Thrust Load Capacity (N) - 2215.2
Radial Stiffness (N/μm) - 159
Maximum Pitch Moment (N-m) - 7.1
Bushing Inside Diameter (mm) - 75.018 (+ .005/-.000)
Bushing Outside Diameter (mm) - 150 (+ .13/-.00)
Bushing Length (mm) - 91.4
Bushing Weight (kg) - 2.8999
Recommended Shaft Outside Diameter (mm) - 75 (- .02)
Flow Rate (NLPM) - 19.9

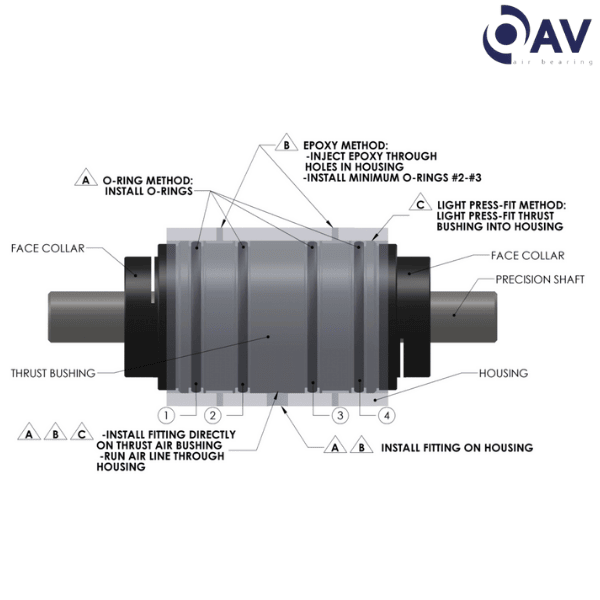

Housing Bore Size O-Ring Method (mm) - 151.94 (+ .000/-.127)
Housing Bore Size Light Press Fit Method (mm) - 150.04 (+ .000/-.04)
** Images are for representation purposes only
