Description
Brand - OAV
Item Number - OAVTB100i50W OAV
Category - Temperature Controlled Thrust Air Bearing
Porous Material - Carbon
Lifetime - Infinite
Cooling Type - Liquid or Cool Air flow
Temperature - TBD
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Radial Load Capacity (lbs) - 195.9
Thrust Load Capacity (lbs) - 193.8
Radial Stiffness (lbs/μin) - 0.63
Maximum Pitch Moment (lbs-in) - 46
Cooling Flow Rate (SCFH) - 67.3
Flow Rate (SCFH) - 28.5
Metric :
Size (mm) - 50
Pressure Port Threads - M5 x 0.8
Radial Load Capacity (N) - 871.4
Thrust Load Capacity (N) - 862.1
Radial Stiffness (N/μm) - 110
Bushing Inside Diameter (mm) - 50.018 (+ .005/.000)
Bushing Outside Diameter (mm) - 100
Bushing Length (mm) - 92
Bushing Weight (kg) - 0.55
Recommended Shaft Outside Diameter (mm) - 50 (- .02)
Flow Rate (NLPM) - 13.5

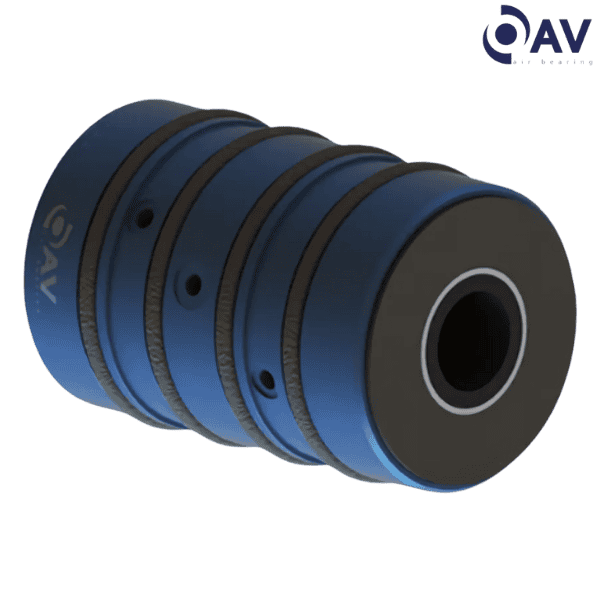

** Image is for representation purposes only
