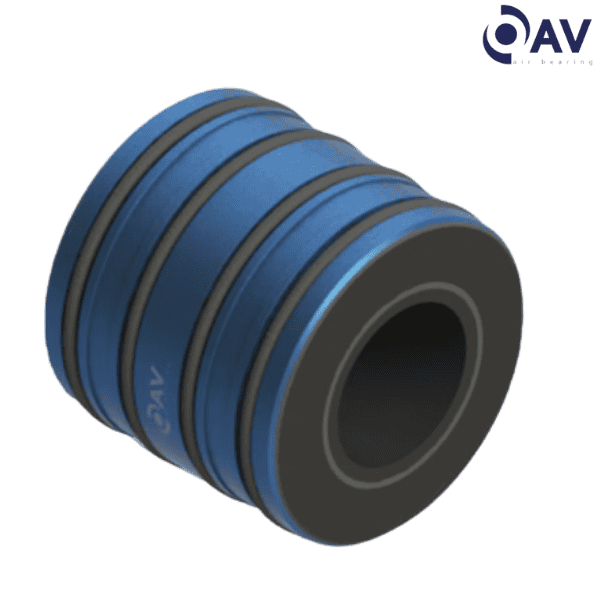

Description
Brand - OAV
Item Number - OAVTB100i50 OAV
Category - Thrust Air Bushings
Housing Material/Finish - 7075 Aircraft Quality Aluminum/Mil Spec Hard Anodize
Lifetime - Infinite
Porous Material - Carbon
Imperial :
Minimum Input Pressure (psi) - 40
Maximum Input Pressure (psi) - 100
Radial Load Capacity (lbs) - 195.9
Thrust Load Capacity (lbs) - 193.8
Radial Stiffness (lbs/μin) - 0.63
Maximum Pitch Moment (lbs-in) - 46
Flow Rate (SCFH) - 28.5
Metric :
Size (mm) - 50
Pressure Port Threads - M5 x 0.8
Radial Load Capacity (N) - 871.4
Thrust Load Capacity (N) - 862.1
Radial Stiffness (N/μm) - 110
Maximum Pitch Moment (N-m) - 5.2
Bushing Inside Diameter (mm) - 50.018 (+ .005/-.000)
Bushing Outside Diameter (mm) - 99.49 (+ .13/-.00)
Bushing Length (mm) - 91.4
Bushing Weight (kg) - 1.2379
Recommended Shaft Outside Diameter (mm) - 50 (- .02)
Flow Rate (NLPM) - 13.5

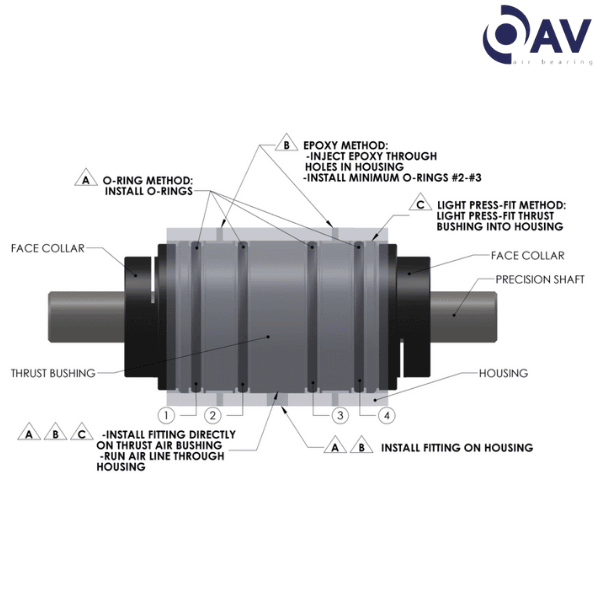

Housing Bore Size O-Ring Method (mm) - 100.4 (+ .000/-.127)
Housing Bore Size Light Press Fit Method (mm) - 99.525 (+ .000/-.035)
** Images are for representation purposes only
